Data import

Connection details

Setting	Description
Host Name Address	Type the Fully Qualified Domain Name of a valid host name.
Connection type	Select if the connection is to be done via HTTP or secured HTTP.
Client	Specify the client number from SAP to which to connect.
Port	Type the port number of the application server.
Timeout in seconds	The number of seconds before a timeout occurs when calling the web services. By default, the value 3600 seconds (one hour) is selected. Optionally, you can change this value to increase or lower the value.
User	Type the username of the administrative user used to access the service.
Password	Type the password for the administrative user. Each time you make a change to any of the settings in the Connection details dialog box, you must type your password again.
Skip certificate check	Select this checkbox to ignore any certificate check when connecting using SSL.
Security protocol	Select the protocol used for HTTPS handshake.
Test connection	Enable this setting to test the specified connection details.

System definition: Advanced

The Advanced section of the System definition contains following settings.

Setting	Description
Language	When you connect to SAP, you define a language so that the text in the user interface is provided in the required language. By default, English (EN) is selected as the language of the SAP system. Optionally, you can remove this value and type the proper country code for your system, for example, DE (Germany).
Use delta	When having this checkbox selected the imports will be set to Delta mode. For Delta mode to work properly, enable the Paging option. For more information go to the Paging section of the document. Additionally, when having Delta mode enabled, be sure to periodically run a Full import.

System definition: Queries and mappings

important

If you are planning an upgrade from version 14.0.8 or lower, follow these steps after the upgrade is complete, but before the first import:

• Add a filter attribute for the Profiles query status!="P"

• Enable the Distinct option for all queries.

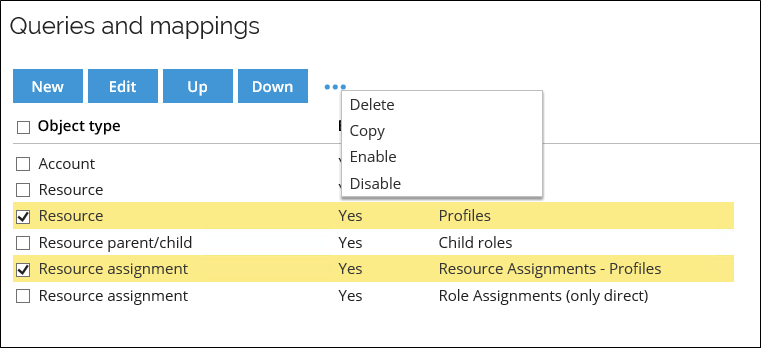

The following queries and mappings are provided out of the box:

Object type	Biding	Service	Description
Account	user_get	omadanet/user_get_all_resp	Users
Resource	role_get	omadanet/auth_roles_resp	Roles
Resource	profile_get	omadanet/auth_prof_resp	Profiles
Resource parent/child	role_get	omadanet/auth_roles_resp	Child roles
Resource assignment	user_get	omadanet/user_get_all_resp	Resource Assignments - Profiles
Resource assignment	user_get	omadanet/user_get_all_resp	Role Assignments (only direct)

Edit query mappings

To edit a query mapping, click the Edit button in the Queries and mappings window. This button opens the Edit query mapping dialog box, where you can define settings for that particular mapping.

The Edit query mapping dialog box consists of four tabs:

• Web Method
• Paging
• Mappings

Web Method

In this tab you can define the web method for the query mapping.The tab consists of the following fields:

• Binding - Enter the binding name you had used when the web services were generated in SAP via transaction SOAMANAGER.It is recommended to use the default naming convention, so you are only required to change the value if you have used a custom naming of the binding in SAP.

• Service - Enter the service name you had used when the web services were generated in SAP via transaction SOAMANAGER.It is recommended to use the default naming convention, so you are only required to change the value if you have used a custom naming of the service in SAP.

• Distinct - Set this option to Yes to allow the query to yield more rows with the same values.

• Filter - Provide a logical expression for each row imported, for example, Name eq 'John.' If it is evaluated to false, the row will be skipped by the collector.

• Enabled - If the query is not Enabled the collector will not perform it.

• Description - Provide a meaningful description of the query mapping.

Paging

This tab allows you to enable and define the paging method.The tab consists of the following fields:

• Use paging - Set this option to No to disable Paging for the collector.

• Request Page Number - Specify the page number from which the collector will start collecting data.

• Request Rows Per Page - Specify the number of rows that will be collected per each page.

Mappings

This tab provides a standard mapping table to define Source and Destination of the mappings between the SAP system and Omada Identity.

Enable/Disable import of objects

All Object types are enabled per default, if an Object type is not required it is possible to disable the import of individual objects.

note

Omada recommends to disable not used object types to optimize the performance of the import.

Once an import has been performed for an object type, it's impossible to disable that object type. You can enable an object if it was initially disabled. To enable or disable object types, select the ones that are to be changed and use the context menu to choose the desired option.

Mapping of resource owners

If you create a query to import resource owners, it is possible to specify the resource's owner in two ways. You can do it either by directly importing the UID of the identity or by specifying the account from which the resolved owner is imported as a resource owner.

When mapping directly to the UID of identity, ensure that identities are already imported to Omada Identity.

When mapping to an owned account, it is possible to either specify the business key of the account or the composed businesskey. The former should be used if the account is in the same system as the resource; the latter should be used if the account is imported into any of the trusted systems.

When the account stems from another system, you should use a Lookup mapping.

SAP mappings to Data Warehouse

Provided Queries and Mappings are supplied as templates and can be adapted to meet customer requirements. The tables below present pre-defined set of names for each object type. See the column Alias Mappings.

warning

SAP Access Data connectivity uses Alias mappings that are all lowercase.

Account

The following attributes are available for the Account dimension.

XML	Data Warehouse (Destination)	Alias mappings (Source)	Comment
/USER/USERNAME	Name, UID, ComposedBusinessKey	username	Used as part of the business key
/USER/MANDT		client
/USER/SYSID		systemId
/USER/LOGONDATA/ACCNT		accountno
/USER/LOGONDATA/ANAME		creator	Creator of the user master record
/USER/LOGONDATA/BCDA1		lastpasswordchange	Date of last password change
/USER/LOGONDATA/CLASS		usergroup
/USER/LOGONDATA/GLTGV	ValidFrom	validfrom
/USER/LOGONDATA/GLTGB	ValidTo	validto
/USER/LOGONDATA/LOCNT		nofailedlogons	Number of failed logon attempts
/USER/LOGONDATA/LTIME		lastlogontime	Last Logon Time
/USER/LOGONDATA/PWDINITIAL		pwdinitial	Indicator: Password is initial (=set by admin)
/USER/LOGONDATA/PWDLGNDATE		pwdlastlogon
/USER/LOGONDATA/PWDLOCKDATE		pwdlockdate	Date: Setting of Password Lock
/USER/LOGONDATA/PWDSETDATE		pwdset	Date: password reset by admin
/USER/LOGONDATA/TRDAT	LastLogon	lastlogon
/USER/LOGONDATA/TZONE		timezone
/USER/LOGONDATA/UFLAG	Status	statusflag	Status set to "Admin-Lock", "Expired" or "Active" based on the uflag value
/USER/LOGONDATA/USTYP		usertype
/USER/ADDRESS/BUILDING		buildingcode
/USER/ADDRESS/COMM_TYPE		commmeth
/USER/ADDRESS/DEPARTMENT		department
/USER/ADDRESS/EMAIL		emailaddress
/USER/ADDRESS/FAX_EXTENS		fax-extension
/USER/ADDRESS/FAX_NUMBER		fax
/USER/ADDRESS/FIRSTNAME		firstname
/USER/ADDRESS/FLOOR		floor
/USER/ADDRESS/FULLNAME	DisplayName	name
/USER/ADDRESS/FUNCTION		function
/USER/ADDRESS/LANGU		language
/USER/ADDRESS/LASTNAME		lastname
/USER/ADDRESS/ROOM_NO		roomnumber
/USER/ADDRESS/TEL1_EXT		telephone-extension
/USER/ADDRESS/TEL1_NUMBER		telephone
/USER/ADDRESS/TITLE_ACA1		academictitle
/USER/ADDRESS/TITLE_P		title
/USER/DEFAULTS/CATTKENNZ		teststatus
/USER/DEFAULTS/DATFM		dateformat
/USER/DEFAULTS/DCPFM		decimalnotation
/USER/DEFAULTS/KOSTL		costcenter
/USER/DEFAULTS/LANGU		logonlanguage
/USER/DEFAULTS/SPDA		deleteafteroutput
/USER/DEFAULTS/SPDB		printimmed
/USER/DEFAULTS/SPLD		outputdevice
/USER/DEFAULTS/START_MENU		startmenu
/USER/DEFAULTS/TIMEFM		timeformat
/USER/UCLASS/LIC_TYPE		licensetype
/USER/ALIAS/USERALIAS		alias
/USER/COMPANY/COMPANY		company
/USER/PARAMETER/PARID		parameterid
/USER/PARAMETER/PARVA		parametervalue
/USER/SNC/GUIFLAG		permitpasswordlogon
/USER/SNC/PNAME		sncname
/USER/GROUPS/USERGROUP		groupusergroup

Resource - profile

The following attributes are available for the Resource dimension for resources that are sourced from SAP Profiles.

XML	Data Warehouse (Destination)	Alias mappings (Source)	Comment
/PROFILES/PROFN	ComposedBusinessKey, Name	profilename	Used as part of the business key
/PROFILES/PTEXT	DisplayName	description
/PROFILES/SYSID		systemid
/PROFILES/MANDT		client
/PROFILES/AKTPS		status

Resource - role

The following attributes are available for the Resource dimension for resources that are sourced from SAP Roles.

XML	Data Warehouse (Destination)	Alias mappings (Source)	Comment
/ROLES/ROLE	ComposedBusinessKey, Name	roleid	Used as part of the business key
/ROLES/ROLE_TEXT	DisplayName	name
/ROLES/ROLE_LONG_TEXT	Description	description
/ROLES/SYSID		systemid
/ROLES/MANDT		client
/ROLES/IS_COMPO		composite
/ROLES/COMPO_CONTAINS		childroles
/ROLES/TCODE		tcodes

Resource - child roles

The following attributes are available for the Resource dimension for resources that are sourced from SAP Child Roles.

XML	Data Warehouse (Destination)	Alias mappings (Source)	Comment
/ROLES/SYSID		systemid
/ROLES/MANDT		client
/ROLES/ROLE		roleid
/ROLES/COMPO_CONTAINS		childrole

ResourceAssignments - profile

The following attributes are available for the ResourceAssignments dimension for resource assignments that are sourced from SAP Profiles.

XML	Data Warehouse (Destination)	Alias mappings (Source)	Comment
/USER/PROFILES/BAPIPROF	Resource_ComposedBusinessKey	profilename	Used as part of the resource business key
/USER/USERNAME	Account_ComposedBusinessKey	username	Used as part of the account business key
/USER/SYSID		systemid
/USER/MANDT		client
/USER/PROFILES/BAPIAKTPS		status

ResourceAssignments - role

The following attributes are available for the ResourceAssignments dimension for resource assignments that are sourced from SAP Roles.

XML	Data Warehouse (Destination)	Alias mappings (Source)	Comment
/USER/ACTIVITYGROUPS/AGR_NAME	Resource_ComposedBusinessKey	roleid	Used as part of the resource business key
/USER/USERNAME	Account_ComposedBusinessKey	username	Used as part of the account business key
/USER/SYSID		systemid
/USER/MANDT		client
/USER/ACTIVITYGROUPS/FROM_DAT	ValidFrom	validfrom
/USER/ACTIVITYGROUPS/TO_DAT	ValidTo	validto
/USER/ACTIVITYGROUPS/ORG_FLAG		composite	Used to determine if the resource assignment is direct or indirect

Default collected data

When you register the SAP Access Data system, three new resource types are created.

Resource type	Description
SAP <systemname> Account	This is the default Account resource type. Two standard account resources are also created. One resource is for personal accounts and the other resource is for orphan accounts with no primary owner.
SAP Role	This is a Permission resource type. When you import roles from SAP, this type is used.
SAP Profile	This is a Permission resource type. When you import profiles from SAP, this type is used.

Warehouse to portal mappings

In order to import the SAP Access Data from the Data Warehouse to the Enterprise Server, the below default mappings are provided.

Data object type	Enabled	Description	SAP object
Resources	Yes	Resource update	Role, Profile
Resources	Yes	Resource update - Omada Identity	Role, Profile
Resources	Yes	Resource owner (Explicit owner)	Role, Profile
Resources	Yes	Resource delete	Role, Profile

Horizons feature enabled

With the Horizons feature enabled, the behavior of Warehouse to Portal mappings has changed. For more information, go to Migrating to Horizons documentation.
