Migrating to the new Microsoft Exchange Online connectivity

Perform the following steps to migrate to the new version of Microsoft Exchange Online connector.

On-prem environments

For on-prem environments, download the new connectivity package from the Omada Hub.

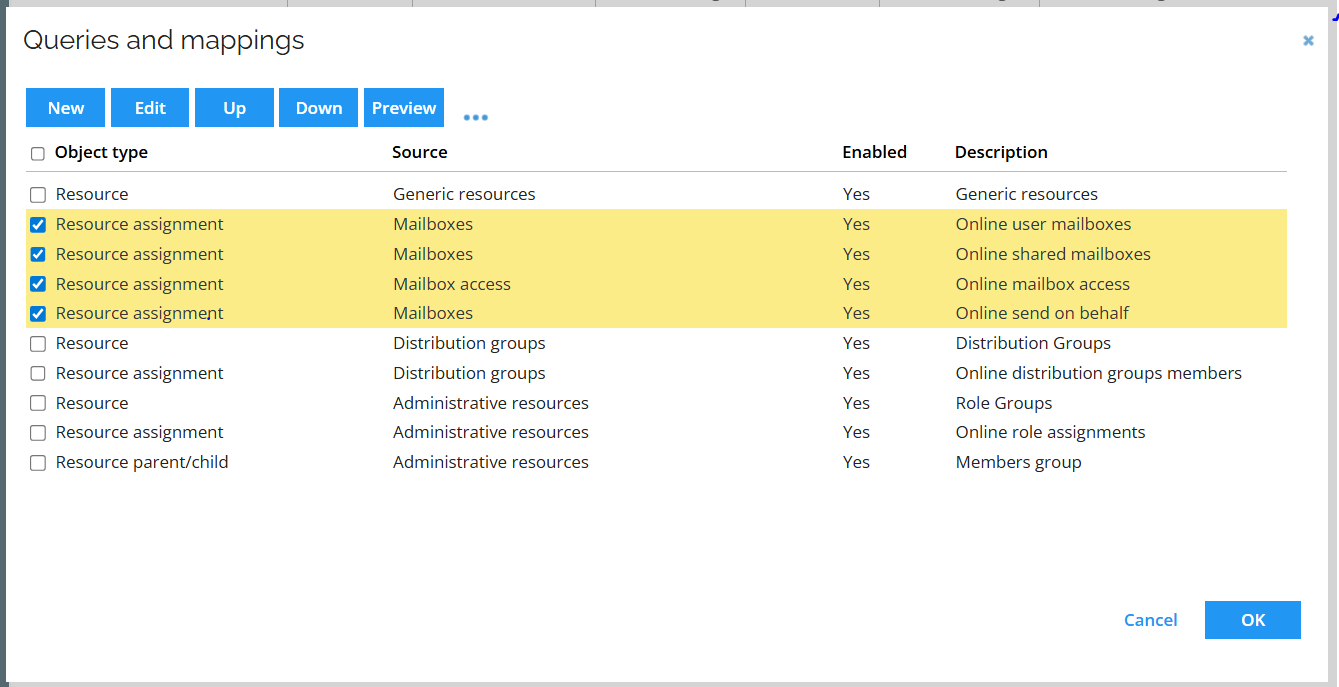

Remove the previous Exchange Online mappings

Before configuring the new Exchange Online connector, remove the previous mappings. Go to Queries and mappings. Locate and delete the following entries with the source set to Mailboxes or Mailbox access:

• Online user mailboxes
• Online shared mailboxes
• Online mailbox access
• Online send on behalf

Create new Resource Assignment queries

1. In the Queries and mappings view, create a new resource assignment query by clicking New.
2. In the dialog that appears, select Resource assignment as the object type for the query. Click OK.
3. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	UserMailbox
Filter	Type=="User mailbox"
Description	Online user mailboxes assignments

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("<system>{0}</system><genericresource>{1}</genericresource>",BuiltIn.SystemShortName,RecipientTypeDetails)
Account - CBK	Lookup	BusinessKey=ExternalDirectoryObjectID
Business key	Expression	Type=="User mailbox"?"<exchangeguid>"+ExchangeGuid+"</exchangeguid>":null
PRIMARY_EMAIL	Map	PrimarySmtpAddress
ADDITIONAL_EMAILS	Map	EmailAddresses
HIDEINADDRESSLIST	Map	HiddenFromAddressListsEnabled
ISSUEWARNINGQUOTA	Map	IssueWarningQuota
PROHIBITSENDQUOTA	Map	ProhibitSendQuota
PROHIBITSENDRECEIVEQUOTA	Map	ProhibitSendReceiveQuota
WEBMAIL	Map	OWAEnabled

4. (second query) Create a new query using steps 1 and 2. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	UserMailbox, RoomMailbox, EquipmentMailbox
Filter	Type=="Send on behalf"
Description	Online user mailbox access assignments - send on behalf

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("<system>{0}</system><genericresource>sendonbehalfofmailboxaccess</genericresource>",BuiltIn.SystemShortName)
Account – CBK	Lookup	BusinessKey=GrantSendOnBehalfTo
Target – CBK	Expression	string.Format("{0}_<exchangeguid>{1}</exchangeguid>", BuiltIn.SourceSystemID, ExchangeGuid)
Business key	Expression	string.Format("<account>{0}</account><resource>{1}</resource><target>{2}</target>", GrantSendOnBehalfTo, Type, ExchangeGuid)
PRIMARY_EMAIL	Map	PrimarySmtpAddress
Identity	Map	Identity
RecipientTypeDetails	Map	RecipientTypeDetails
ExternalDirectoryObjectID	Map	ExternalDirectoryObjectID
GrantSendOnBehalfTo	Map	GrantSendOnBehalfTo
MAILBOXREF	Expression	string.Format("{0}_<exchangeguid>{1}</exchangeguid>", BuiltIn.SourceSystemID, ExchangeGuid)

4. (third query) Create a new query using steps 1 and 2. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	UserMailbox, RoomMailbox, EquipmentMailbox
Filter	LinkedMasterAccount != null && LinkedMasterAccount != "NT AUTHORITY"
Description	Online mailbox access assignments - Full Access and Send As

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("<system>{0}</system><genericresource>{1}</genericresource>",BuiltIn.SystemShortName, Type == "Full access" ? "fullmailboxaccess": "sendasmailboxaccess")
Account – CBK	Lookup	DistinguishedName=LinkedMasterAccount
Target – CBK		string.Format("{0}_<exchangeguid>{1}</exchangeguid>", BuiltIn.SourceSystemID, ExchangeGuid)
Business key	Expression	string.Format("<account>{0}</account><resource>{1}</resource><target>{2}</target>", LinkedMasterAccount, Type, ExchangeGuid)
LinkedMasterAccount	Map	LinkedMasterAccount
AccessType	Map	Type
MAILBOXREF	Expression	string.Format("{0}_<exchangeguid>{1}</exchangeguid>", BuiltIn.SourceSystemID, ExchangeGuid)

5. (fourth query) Create a new query using steps 1 and 2. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	DiscoveryMailbox, SchedulingMailbox, RoomMailbox, EquipmentMailbox
Filter	Identity != null && Type !="Full access" && Type !="Send as"&& Type !="Send on behalf"
Description	Online mailboxes assignments - DiscoveryMailbox, SchedulingMailbox, RoomMailbox, EquipmentMailbox

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("<system>{0}</system><genericresource>{1}</genericresource>",BuiltIn.SystemShortName,RecipientTypeDetails)
Account – CBK	Lookup	BusinessKey=ExternalDirectoryObjectID
Business key	Expression	Type=="Usermailbox"?"<exchangeguid>"+ExchangeGuid+"</exchangeguid>":null
PRIMARY_EMAIL	Map	PrimarySmtpAddress
ADDITIONAL_EMAILS	Map	EmailAddresses
HIDEINADDRESSLIST	Map	HiddenFromAddressListsEnabled
ISSUEWARNINGQUOTA	Map	IssueWarningQuota
PROHIBITSENDQUOTA	Map	ProhibitSendQuota
PROHIBITSENDRECEIVEQUOTA	Map	ProhibitSendReceiveQuota
WEBMAIL	Map	OWAEnabled

Create new Resource queries

1. In the Queries and mappings view, create a new resource query by clicking New.
2. In the dialog that appears, select Resource as the object type for the query. Click OK.
3. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	SharedMailbox
Distinct	Yes
Description	Online SharedMailbox - FullAccess

Mappings:

Destination	Operator	Source
Business key	Expression	ExchangeGuid + "_FullAccess"
Security resource business key	Expression	ExchangeGuid + "_FullAccess"
Name		DisplayName + "_FullAccess"
Category	Constant	Permission
Type	Expression	RecipientTypeDetails == "RoomMailbox" ? "Exchange Room Mailbox" : RecipientTypeDetails == "SharedMailbox" ? "Exchange Shared Mailbox" : RecipientTypeDetails == "EquipmentMailbox" ? "Exchange Equipment Mailbox" : null
Short Name	Expression	DisplayName + "_FullAccess"
Logical key	Expression	string.Format("<exchangeguid>{0}</exchangeguid>", DisplayName)
PrimarySmtpAddress	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
PRIMARY_EMAIL	Map	PrimarySmtpAddress
ADDITIONAL_EMAILS	Map	EmailAddresses
HIDEINADDRESSLIST	Map	HiddenFromAddressListsEnabled
ISSUEWARNINGQUOTA	Map	IssueWarningQuota
PROHIBITSENDQUOTA	Map	ProhibitSendQuota
PROHIBITSENDRECEIVEQUOTA	Map	ProhibitSendReceiveQuota
LINKEDMAILBOXDOMAIN	Map	LinkedMasterAccount
WEBMAIL	Map	WEBMAIL
Identity	Map	Identity

4. (second query) Create a new query using steps 1 and 2. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	SharedMailbox
Distinct	Yes
Description	Online SharedMailbox - SendAs

Mappings:

Destination	Operator	Source
Business key	Expression	ExchangeGuid + "_SendAs"
Security resource business key	Expression	ExchangeGuid + "_SendAs"
Name		DisplayName + "_SendAs"
Category	Constant	Permission
Type	Expression	RecipientTypeDetails == "RoomMailbox" ? "Exchange Room Mailbox" : RecipientTypeDetails == "SharedMailbox" ? "Exchange Shared Mailbox" : RecipientTypeDetails == "EquipmentMailbox" ? "Exchange Equipment Mailbox" : null
Short Name	Expression	DisplayName + "_SendAs"
Logical key	Expression	string.Format("<exchangeguid>{0}_SendAs</exchangeguid>", DisplayName)
Description	Expression	string.Format("<exchangeguid>{0}_SendAs</exchangeguid>", DisplayName)
PrimarySmtpAddress	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
PrimarySmtpAddress	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
PRIMARY_EMAIL	Map	PrimarySmtpAddress
ADDITIONAL_EMAILS	Map	EmailAddresses
HIDEINADDRESSLIST	Map	HiddenFromAddressListsEnabled
ISSUEWARNINGQUOTA	Map	IssueWarningQuota
PROHIBITSENDQUOTA	Map	ProhibitSendQuota
PROHIBITSENDRECEIVEQUOTA	Map	ProhibitSendReceiveQuota
LINKEDMAILBOXDOMAIN	Map	LinkedMasterAccount
WEBMAIL	Map	WEBMAIL
Identity	Map	Identity

5. (third query) Create a new query using steps 1 and 2. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	SharedMailbox
Distinct	Yes
Description	Online SharedMailbox - SendOnBehalf

Mappings:

Destination	Operator	Source
Business key	Expression	ExchangeGuid + "_SendOnBehalf"
Security resource business key	Expression	ExchangeGuid + "_SendOnBehalf"
Name		DisplayName + "_SendOnBehalf"
Category	Constant	Permission
Type	Expression	RecipientTypeDetails == "RoomMailbox" ? "Exchange Room Mailbox" : RecipientTypeDetails == "SharedMailbox" ? "Exchange Shared Mailbox" : RecipientTypeDetails == "EquipmentMailbox" ? "Exchange Equipment Mailbox" : null
Short Name	Expression	DisplayName + "_SendOnBehalf"
Logical key	Expression	string.Format("<exchangeguid>{0}_SendOnBehalf</exchangeguid>", DisplayName)
Description	Expression	string.Format("<exchangeguid>{0}_SendOnBehalf</exchangeguid>", DisplayName)
PrimarySmtpAddress	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
PrimarySmtpAddress	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
PRIMARY_EMAIL	Map	PrimarySmtpAddress
ADDITIONAL_EMAILS	Map	EmailAddresses
HIDEINADDRESSLIST	Map	HiddenFromAddressListsEnabled
ISSUEWARNINGQUOTA	Map	IssueWarningQuota
PROHIBITSENDQUOTA	Map	ProhibitSendQuota
PROHIBITSENDRECEIVEQUOTA	Map	ProhibitSendReceiveQuota
LINKEDMAILBOXDOMAIN	Map	LinkedMasterAccount
WEBMAIL	Map	WEBMAIL
Identity	Map	Identity

Create new Resource Assignment queries

1. In the Queries and mappings view, create a new resource assignment query by clicking New.
2. In the dialog that appears, select Resource assignment as the object type for the query. Click OK.
3. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailbox access
Mailbox subtype	SharedMailbox
Filter	LinkedMasterAccount != null && LinkedMasterAccount != "NT AUTHORITY" && Type == "Full access"
Description	Online Shared mailbox access - Full Access

Mappings:

Destination	Operator	Source
Resource Business key	Expression	ExchangeGuid + "_FullAccess"
Account - CBK	Lookup	BusinessKey=Identity
Business key	Expression	string.Format("<account>{0}</account><resource>{1}</resource><target>{2}</target>", LinkedMasterAccount, Type, ExchangeGuid)
LinkedMasterAccount	Map	LinkedMasterAccount
AccessType	Map	Type

4. (second query) Create a new query using steps 1 and 2. Use the following configuration:

Parameters:

Parameter	Value
Source	Mailbox access
Mailbox subtype	SharedMailbox
Filter	LinkedMasterAccount != null && LinkedMasterAccount != "NT AUTHORITY" && Type == "Send as"
Description	Online Shared mailbox access - Send as

Mappings:

Destination	Operator	Source
Resource Business key	Expression	ExchangeGuid + "_SendAs"
Account - CBK	Lookup	BusinessKey=Identity
Business key	Expression	string.Format("<account>{0}</account><resource>{1}</resource><target>{2}</target>", LinkedMasterAccount, Type, ExchangeGuid)
LinkedMasterAccount	Map	LinkedMasterAccount
AccessType	Map	Type

5. (third query) Create a new query using steps 1 and 2. Use the following configuration:

Parameter	Value
Source	Mailboxes
Mailbox subtype	SharedMailbox
Filter	Type=="Send on behalf"
Description	Resource Assignment - SharedMailbox, EquipmentMailbox, RoomMailbox - SendOnBehalf

• Mappings:

Destination	Operator	Source
Resource Business key	Expression	ExchangeGuid + "_SendOnBehalf"
Account - CBK	Lookup	BusinessKey=GrantSendOnBehalfTo
Business key	Expression	string.Format("<account>{0}</account><resource>{1}</resource><target>{2}</target>", GrantSendOnBehalfTo, Type, ExchangeGuid)
PRIMARY_EMAIL	Map	PrimarySmtpAddress
Identity	Map	Identity
RecipientTypeDetails	Map	RecipientTypeDetails
ExternalDirectoryObjectID	Map	ExternalDirectoryObjectID
GrantSendOnBehalfTo	Map	GrantSendOnBehalfTo

Edit the Distribution Groups Resources query

1. In the Queries and mappings view, select the query with Source = Distribution groups. Click Edit.



2. In the editor, update the content to match the configuration provided for the new Exchange Online connector:

Parameters:

Parameter	Value
Source	Distribution groups
Distinct	Yes
Filter	Type=="DistributionGroups" && DistributionGroupIsDirSynced == "False" && !(Convert.ToString(DistributionGroupType).Contains("SecurityEnabled"))
Description	Distribution Groups

Mappings:

Destination	Operator	Source
Business key	Map	DistributionGroupGuid
Security resource business key	Map	DistributionGroupGuid
Name	Map	DistributionGroupName
Category	Constant	Distribution Group
Type	Constant	Exchange Distribution Group
Display name	Map	DistributionGroupDisplayName
Short name	Map	DistributionGroupName
Logical key	Expression	!string.IsNullOrEmpty(DistributionGroupCustomAttribute1) ? DistributionGroupCustomAttribute1 : DistributionGroupGuid
Distinguished Name	Map	DistributionGroupDistinguishedName
DistributionGroupType	Map	DistributionGroupType
DistributionGroupExternalDirectoryObjectId	Map	DistributionGroupExternalDirectoryObjectId
DistributionGroupIsDirSynced	Map	DistributionGroupIsDirSynced

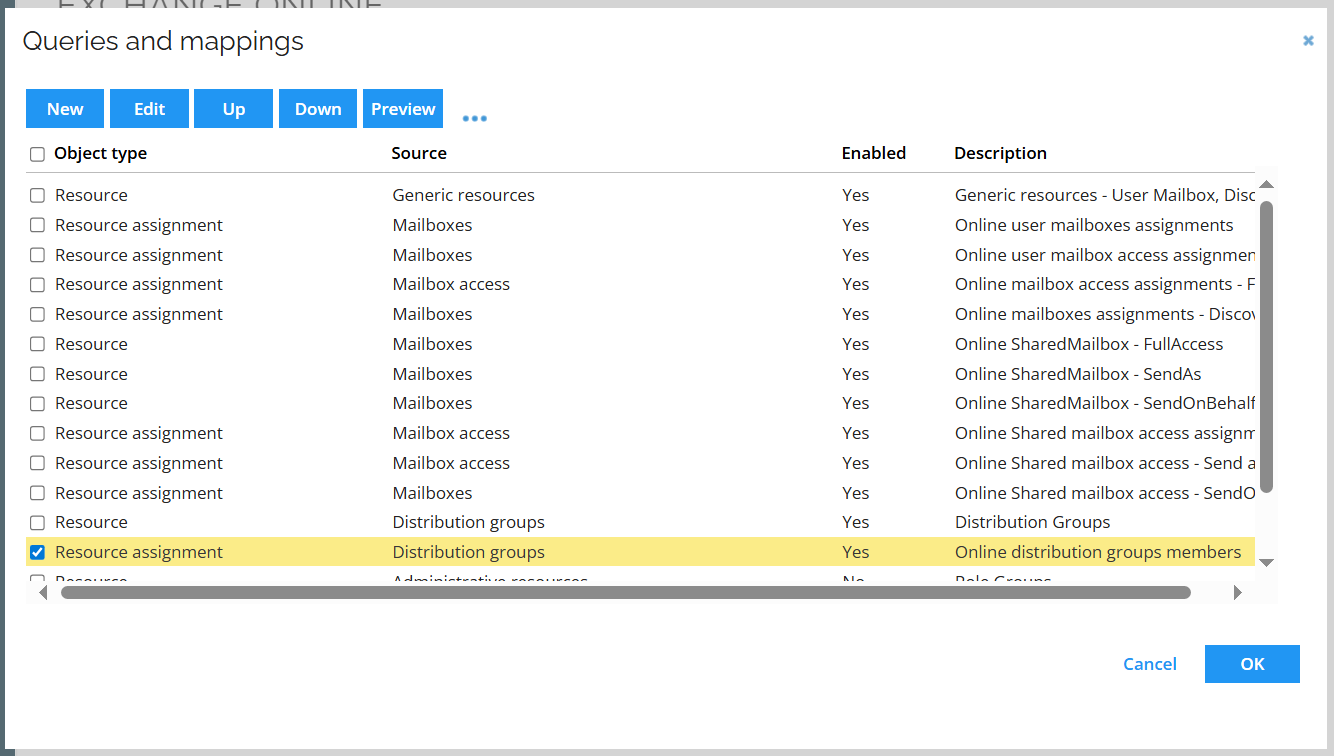

Edit the Distribution Resource Assignments query

1. In the Queries and mappings view, select the query named Distribution groups. Click Edit.



2. In the editor, update the content to match the configuration provided for the new Exchange Online connector:

Parameters:

Parameter	Value
Source	Distribution groups
Distinct	Yes
Filter	Type=="DistributionGroupMembers" && MemberRecipientTypeDetails == "UserMailbox" && DistributionGroupIsDirSynced == "False" && !(Convert.ToString(DistributionGroupType).Contains("SecurityEnabled"))
Description	Online distribution groups members

Mappings:

Destination	Operator	Source
Resource business key	Map	DistributionGroupGuid
Account - CBK	Lookup	BusinessKey=MemberExternalDirectoryObjectId
Description	Map	MemberRecipientTypeDetails
MemberExternalDirectoryObjectId	Map	MemberExternalDirectoryObjectId

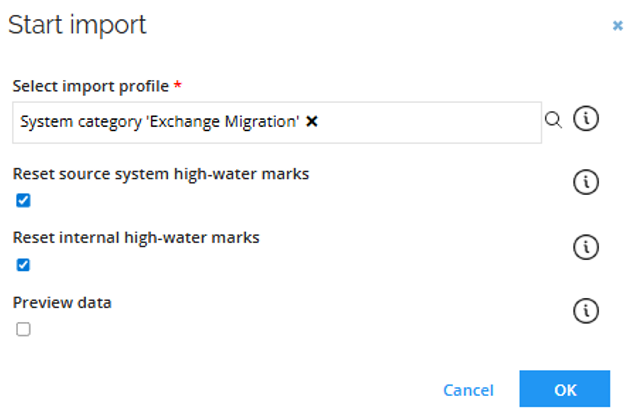

Queries and mappings - import prerequisites

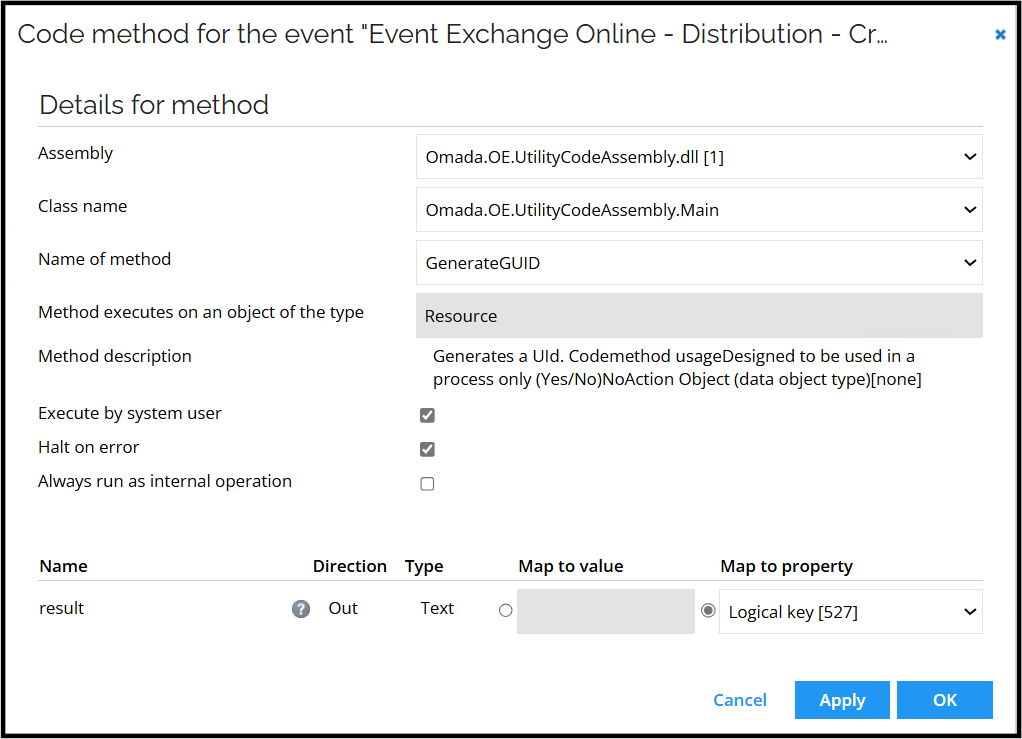

Before starting the import, create an event definition to populate the Prevent Self-Service field of the Shared Mailbox resources.

1. In Omada Identity, go to Setup > Administration > Process configuration > Event definitions. Click New. Enter the following details:1. - In Omada Identity, go to Setup > Administration > Process configuration > Event definitions. Click New. Enter the following details:

   • Name: Exchange Online - Prevent self-service
   • Event is triggered when: Select the A new object is created checkbox
   • Triggers on objects of type: Resources

2. Click Apply.

3. At the bottom of the screen, click New to create a new Execute code method action.

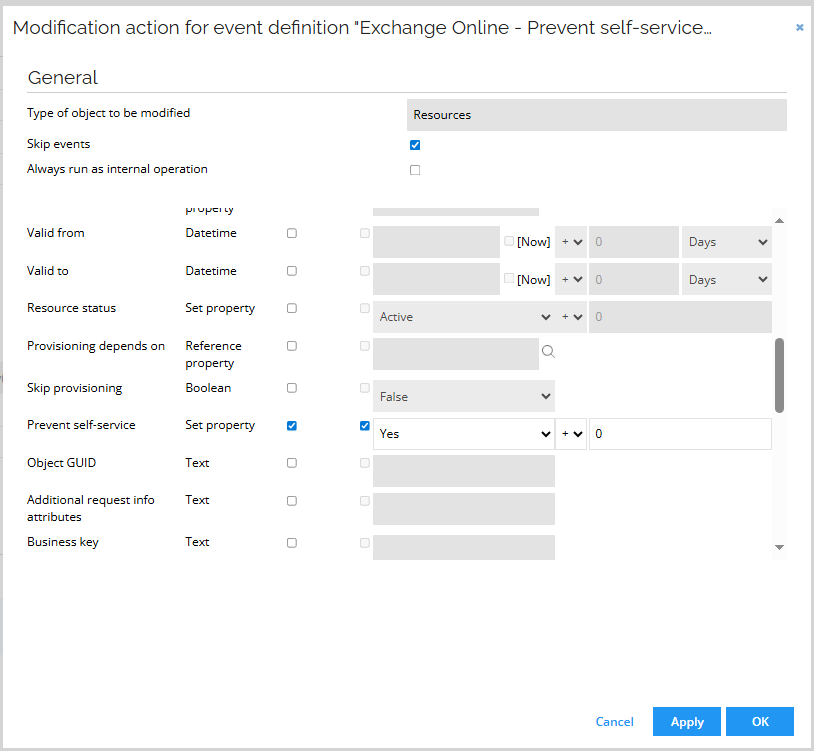

4. Select Modify object. Use the following configuration:



5. Click OK.

6. Click Filter.

7. Create 3 new filters:

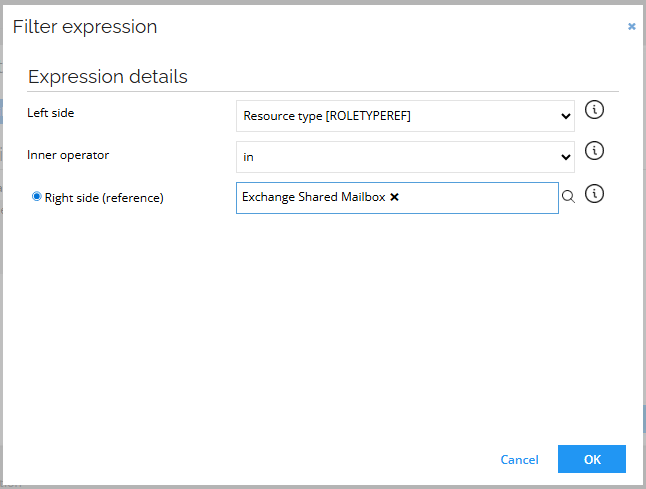

• Left side: Resource Type

• Right side (reference): Exchange Shared Mailbox

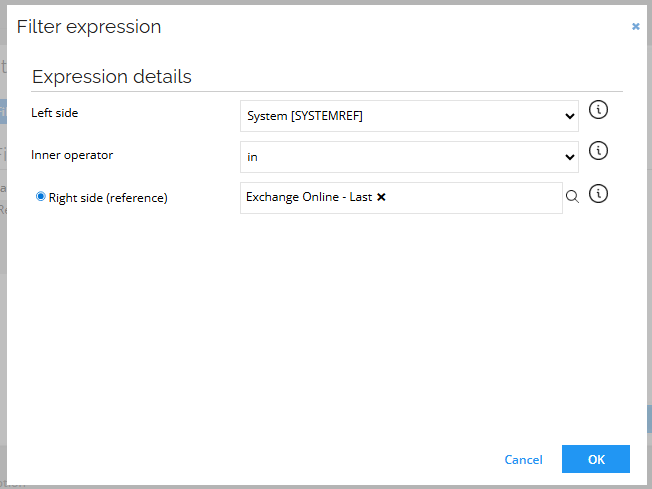

• Left side: System

• Right side(reference): Choose the name of your Exchange Online System



• Left side: Name

• Right side (value): Shared mailbox



8. Click Close and OK.
9. Run the import.

Provisioning - task mappings

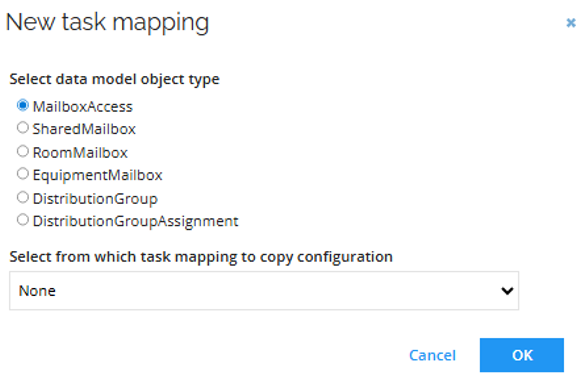

1. Open and edit the MailboxAccess task mapping:

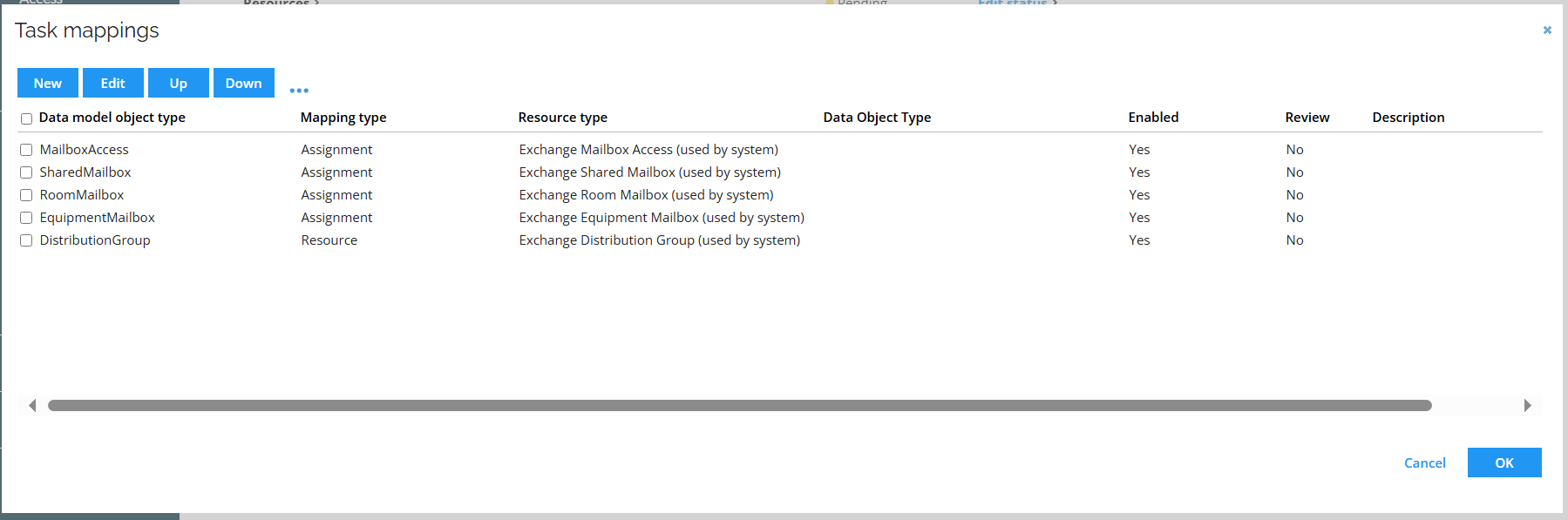

2. In the Task Mappings screen, locate the row MailboxAccess.

3. Select the MailboxAccess row checkbox (it should be the first in the list). Click Edit.

4. In the configuration window, adjust the following settings:

Destination	Operator	Source
Object Id	Map	ObjectId
Object type	Constant	MailboxAccess
Operation	Map	Operation
Identity	Map	ROPE_AccountName
mailboxPermission	Expression	ROPE_Resource.ToUpper()
userMailboxGuid	Map	ROPE_ATTR_MAILBOXREF

5. Go back to the Task mappings screen. Locate the DistributionGroup row.
6. Select the DistributionGroup row checkbox. Click Edit.
7. In the configuration window, adjust the following settings:

Destination	Operator	Source
Object Id	Map	ObjectId
Object type	Constant	DistributionGroup
Operation	Map	Operation
Identity	Expression	Operation == "Create" || Operation == "CreateIfNotExists" ? RLM_NAME : RLM_ODWBUSIKEY.Substring(RLM_ODWBUSIKEY.IndexOf("_") + 1, RLM_ODWBUSIKEY.LastIndexOf("<") - RLM_ODWBUSIKEY.IndexOf("_") - 1)
Name	Map	RLM_NAME
DisplayName	Map	RLM_NAME
Type	Constant	Distribution
bundledAttributes	Expression	string.Format("CustomAttribute1={0}", RLM_ODWLOGICKEY)

8. Go back to the Task mappings screen. Locate the DistributionGroupAssignment row.
9. Select the DistributionGroupAssignment row checkbox. Click Edit.
10. In the configuration window, adjust the following settings:

Destination	Operator	Source
Object Id	Map	ObjectId
Object type	Constant	DistributionGroupAssignment
Operation	Map	Operation
Identity	Map	ROPE_DistinguisedName
distributionGroupGuid	Expression	ROPE_ResourceCBK.Substring(ROPE_ResourceCBK.IndexOf("_") + 1, ROPE_ResourceCBK.LastIndexOf("<") - ROPE_ResourceCBK.IndexOf("_") - 1)
