Data import

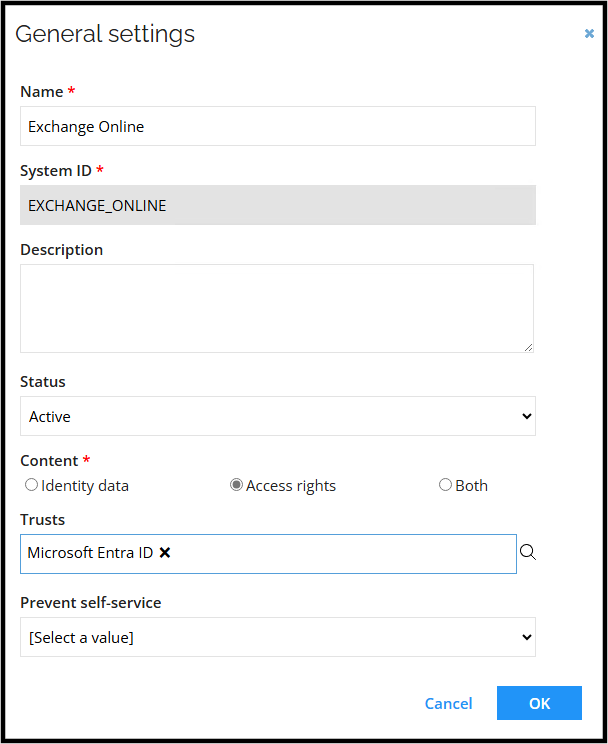

General settings

Connection details

Setting	Description
Authentication	Certificate with password
Organization	Organization - specifies the organization that is used.
Application ID	Specifies the application ID of the service principal that's used in certificate-based authentication.
Certificate (PEM format)	The certificate used for certificate-based authentication. Value should be enclosed with -----BEGIN CERTIFICATE----- and -----END CERTIFICATE-----
Private key (PEM format)	A private key used for certificate-based authentication. Value should be enclosed with -----BEGIN PRIVATE KEY----- and -----END PRIVATE KEY-----
Private key password	Specifies a password for the private key used for certificate-based authentication.
Private key password	Private key password.
Script file	A custom script file.
Test connection	Enable this setting to test the connection information that you have specified.

Before the first import

Before starting the import, create an Event Definition to populate the Prevent Self-Service field of the Shared Mailbox resources.

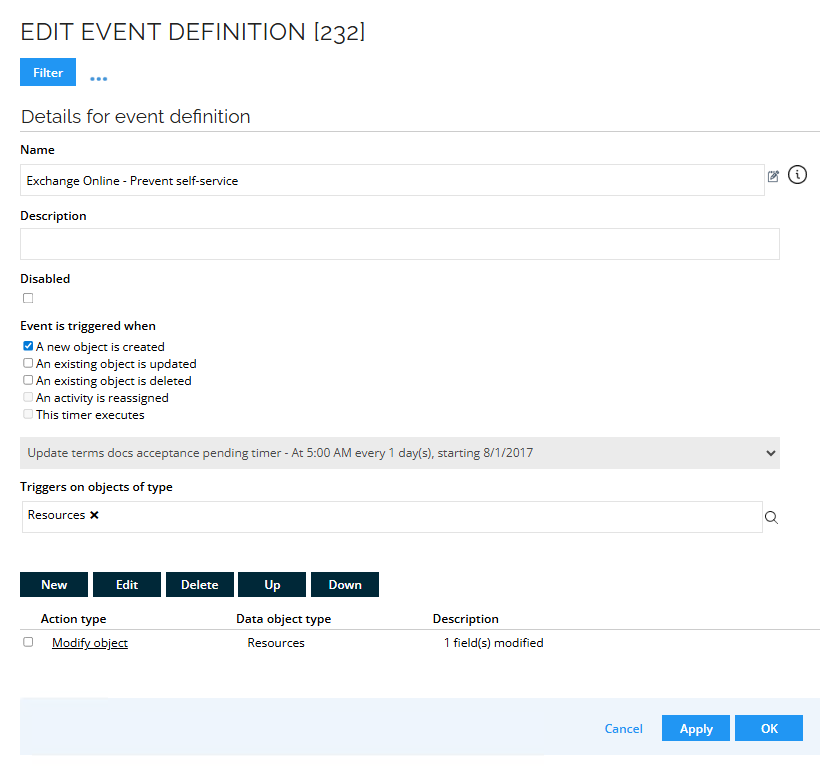

1. In Omada Identity, go to Setup > Administration > Process configuration > Event definitions. Click New. Enter the following details:

   • Name: Exchange Online - Prevent self-service
   • Event is triggered when: Select the A new object is created checkbox
   • Triggers on objects of type: Resources

2. Click Apply.



3. At the bottom part of the window, click New to create a new Execute code method action.

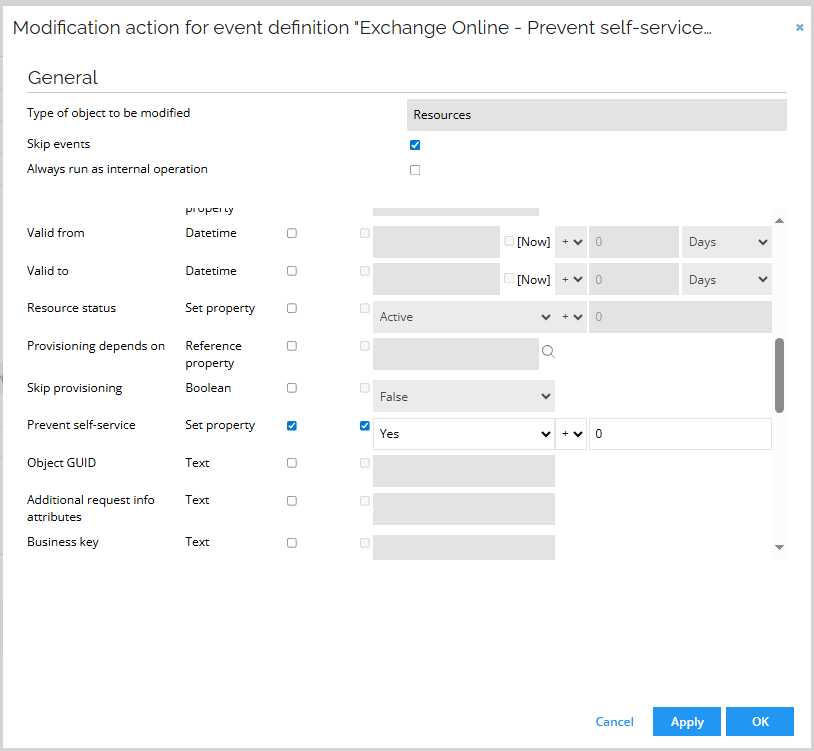

4. Select Modify object and ensure the following configuration is applied:



5. Click OK.

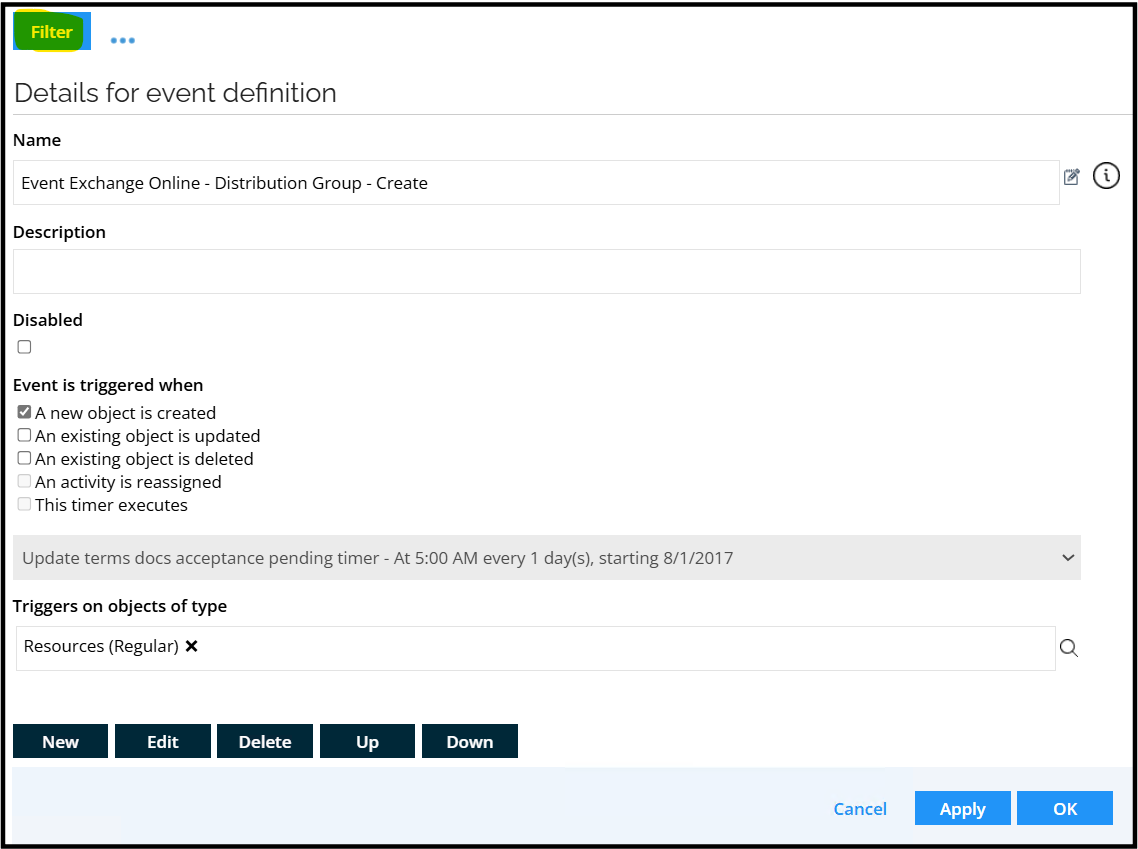

6. Click Filter.



7. Create 3 new filters:

• Left side: Resource Type
• Right side (reference): Exchange Shared Mailbox

• Left side: System
• Right side(reference): Choose the name of your Exchange Online System

• Left side: Name
• Right side (value): Shared mailbox

8. Click OK and then Close.



Queries and mappings

Generic Resources - Resource

Parameters:

Parameter	Value
Source	Generic resources
Distinct	Yes
Filter	Type=="Exchange User Mailbox" || Type=="Exchange Mailbox Access"
Description	Generic resources - User Mailbox and Mailbox Access

Mappings:

Destination	Operator	Source
Business key	Expression	string.Format("<system>{0}</system><genericresource>{1}</genericresource>",BuiltIn.SystemShortName, BusinessKey)
Security resource business key	Expression	string.Format("<system>{0}</system><genericresource>{1}</genericresource>",BuiltIn.SystemShortName, BusinessKey)
Name	Map	Name
Category	Map	Category
Type	Map	Type
Short name	Expression	string.Format("{0}_{1}", BuiltIn.SystemShortName, BusinessKey)
Logical key	Expression	string.Format("{0}_{1}", BuiltIn.SystemShortName, BusinessKey)

User Mailbox – Resource Assignments

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	UserMailbox
Filter	Type=="User mailbox"
Description	Online user mailboxes assignments

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("<system>{0}</system><genericresource>{1}</genericresource>",BuiltIn.SystemShortName,RecipientTypeDetails)
Account - CBK	Lookup	BusinessKey=ExternalDirectoryObjectID
Business key	Expression	Type=="User mailbox"?"<exchangeguid>"+ExchangeGuid+"</exchangeguid>":null
PRIMARY_EMAIL (1)	Map	PrimarySmtpAddress
ADDITIONAL_EMAILS (2)	Map	EmailAddresses
HIDEINADDRESSLIST (1)	Map	HiddenFromAddressListsEnabled
ISSUEWARNINGQUOTA	Map	IssueWarningQuota
PROHIBITSENDQUOTA	Map	ProhibitSendQuota
PROHIBITSENDRECEIVEQUOTA	Map	ProhibitSendReceiveQuota
WEBMAIL (1)	Map	OWAEnabled

(1) - history
(2) - history and multivalued

User - Access Mailbox (send on behalf) – Resource Assignments

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	UserMailbox
Filter	Type=="Send on behalf"
Description	Online user mailbox access - Send on Behalf

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("\<system\>{0}\</system\>\<genericresource\>sendonbehalfofmailboxaccess\</genericresource\>",BuiltIn.SystemShortName)
Account – CBK	Lookup	BusinessKey=GrantSendOnBehalfTo
Target – CBK	Expression	string.Format("{0}\_\<exchangeguid\>{1}\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Business key	Expression	string.Format("\<account\>{0}\</account\>\<resource\>{1}\</resource\>\<target\>{2}\</target\>", GrantSendOnBehalfTo, Type, ExchangeGuid)
PRIMARY_EMAIL (1)	Map	PrimarySmtpAddress
Identity	Map	Identity
RecipientTypeDetails	Map	RecipientTypeDetails
ExternalDirectoryObjectID	Map	ExternalDirectoryObjectID
GrantSendOnBehalfTo	Map	GrantSendOnBehalfTo
MAILBOXREF	Expression	string.Format("{0}\_\<exchangeguid\>{1}\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)

(1) - history

Shared, Room and Equipment Mailbox – Full Access – Resource

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	EquipmentMailbox,RoomMailbox,SharedMailbox
Distinct	Yes
Description	Online SharedMailbox, EquipmentMailbox, RoomMailbox - FullAccess

Mappings:

Destination	Operator	Source
Business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_FullAccess\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Security resource business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_FullAccess\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Name		DisplayName + "_FullAccess"
Category	Constant	Permission
Type	Expression	RecipientTypeDetails == "RoomMailbox" ? "Exchange Room Mailbox" : RecipientTypeDetails == "SharedMailbox" ? "Exchange Shared Mailbox" : RecipientTypeDetails == "EquipmentMailbox" ? "Exchange Equipment Mailbox" : null
Short Name	Expression	string.Format("\<exchangeguid\>{0}\_FullAccess\</exchangeguid\>", ExchangeGuid)
Logical key	Expression	string.Format("\<exchangeguid\>{0}\</exchangeguid\>", DisplayName)
PRIMARY_EMAIL (1)	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
Identity	Map	Identity

(1) history

note

Do not use the description field, Omada is using this field to trigger event definitions.

Shared, Room and Equipment Mailbox – Send As – Resource

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	EquipmentMailbox,RoomMailbox,SharedMailbox
Distinct	Yes
Description	Online SharedMailbox, EquipmentMailbox, RoomMailbox - SendAs

Mappings:

Destination	Operator	Source
Business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_SendAs\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Security resource business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_SendAs\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Name		DisplayName + "_SendAs"
Category	Constant	Permission
Type	Expression	RecipientTypeDetails == "RoomMailbox" ? "Exchange Room Mailbox" : RecipientTypeDetails == "SharedMailbox" ? "Exchange Shared Mailbox" : RecipientTypeDetails == "EquipmentMailbox" ? "Exchange Equipment Mailbox" : null
Short Name	Expression	string.Format("\<exchangeguid\>{0}\_SendAs\</exchangeguid\>", ExchangeGuid)
Description	Expression	string.Format("\<exchangeguid\>{0}\_SendAs\</exchangeguid\>", DisplayName)
PRIMARY_EMAIL (1)	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
Identity	Map	Identity

(1) history

note

Do not use the description field, Omada is using this field to trigger event definitions.

Shared, Room and Equipment Mailbox – Send on Behalf – Resource

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	EquipmentMailbox,RoomMailbox,SharedMailbox
Distinct	Yes
Description	Online SharedMailbox, EquipmentMailbox, RoomMailbox - SendOnBehalf

Mappings:

Destination	Operator	Source
Business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_SendOnBehalf\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Security resource business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_SendOnBehalf\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Name		DisplayName + "_SendOnBehalf"
Category	Constant	Permission
Type	Expression	RecipientTypeDetails == "RoomMailbox" ? "Exchange Room Mailbox" : RecipientTypeDetails == "SharedMailbox" ? "Exchange Shared Mailbox" : RecipientTypeDetails == "EquipmentMailbox" ? "Exchange Equipment Mailbox" : null
Short Name	Expression	string.Format("\<exchangeguid\>{0}\_SendOnBehalf\</exchangeguid\>", ExchangeGuid)
Description	Expression	string.Format("\<exchangeguid\>{0}\_SendOnBehalf\</exchangeguid\>", DisplayName)
PRIMARY_EMAIL (1)	Map	PrimarySmtpAddress
RecipientTypeDetails	Map	RecipientTypeDetails
Identity	Map	Identity

(1) history

note

Do not use the description field, Omada is using this field to trigger event definitions.

Shared, Room and Equipment Mailbox (Full Access) – Resource Assignments

Parameters:

Parameter	Value
Source	Mailbox access
Mailbox subtype	EquipmentMailbox,RoomMailbox,SharedMailbox
Filter	LinkedMasterAccount != null && LinkedMasterAccount != "NT AUTHORITY" && Type == "Full access"
Description	Online EquipmentMailbox, RoomMailbox and SharedMailbox access - Full Access

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_FullAccess\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Account - CBK	Lookup	DistinguishedName=LinkedMasterAccount
Target - CBK	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_FullAccess\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Business key	Expression	string.Format("\<account\>{0}\_\</account\>\<exchangeguid\>{1}\_FullAccess\</exchangeguid\>", LinkedMasterAccount, ExchangeGuid)
LinkedMasterAccount	Map	LinkedMasterAccount
AccessType	Map	Type

Shared, Room and Equipment Mailbox (Send As) – Resource Assignments

Parameters:

Parameter	Value
Source	Mailbox access
Mailbox subtype	EquipmentMailbox,RoomMailbox,SharedMailbox
Filter	LinkedMasterAccount != null && LinkedMasterAccount != "NT AUTHORITY" && Type == "Send as"
Description	Online EquipmentMailbox, RoomMailbox and SharedMailbox access - Send as

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_SendAs\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Account - CBK	Lookup	DistinguishedName=LinkedMasterAccount
Target - CBK	Expression	string.Format("{0}\_\<exchangeguid\>{1}\_SendAs\</exchangeguid\>", BuiltIn.SourceSystemID, ExchangeGuid)
Business key	Expression	string.Format("\<account\>{0}\_\</account\>\<exchangeguid\>{1}\_SendAs\</exchangeguid\>", LinkedMasterAccount, ExchangeGuid)
LinkedMasterAccount	Map	LinkedMasterAccount
AccessType	Map	Type

Shared, Room and Equipment Mailbox (Send on Behalf) – Resource Assignments

Parameters:

Parameter	Value
Source	Mailboxes
Mailbox subtype	EquipmentMailbox,RoomMailbox,SharedMailbox
Filter	Type==”Send on behalf”
Description	Online EquipmentMailbox, RoomMailbox and SharedMailbox access - send on behalf

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("0_<exchangeguid>1_SendOnBehalf</exchangeguid>", BuiltIn.SourceSystemID, ExchangeGuid)
Account - CBK	Lookup	BusinessKey=GrantSendOnBehalfTo
Target - CBK	Expression	string.Format("0_<exchangeguid>1_SendOnBehalf</exchangeguid>", BuiltIn.SourceSystemID, ExchangeGuid)
Business key	Expression	string.Format("<account>0_</account><exchangeguid>1_SendOnBehalf</exchangeguid>", GrantSendOnBehalfTo, ExchangeGuid)
PRIMARY_EMAIL (1)	Map	PrimarySmtpAddress
Identity	Map	Identity
RecipientTypeDetails	Map	RecipientTypeDetails
ExternalDirectoryObjectID	Map	ExternalDirectoryObjectID
GrantSendOnBehalfTo	Map	GrantSendOnBehalfTo

(1) - history

Distribution groups - Resource

By default, Omada applies a single query to retrieve only distribution groups during the import process. This means that Microsoft 365 Groups and mail-enabled security groups are not included. You can remove or adjust the filter to import all group types. To onboard distribution groups and mail-enabled security groups separately, use additional filtering - use the DistributionGroupType attribute and provide the SecurityEnabled value to specifically provision mail-enabled security groups.

Parameter	Value
Source	Distribution Group
Filter	Type=="DistributionGroups" && DistributionGroupIsDirSynced == "False" && !(Convert.ToString(DistributionGroupType).Contains("SecurityEnabled"))
Description	Distribution Groups

Mappings:

Destination	Operator	Source
Business key	Expression	DistributionGroupGuid
Security resource business key	Expression	DistributionGroupGuid
Name	Map	DistributionGroupName
Category	Constant	Distribution Group
Type	Constant	Exchange Distribution Group
Display name	Map	DistributionGroupDisplayName
Short Name	Expression	DistributionGroupName
Logical key (1)	Expression	!string.IsNullOrEmpty(DistributionGroupCustomAttribute1) ? DistributionGroupCustomAttribute1 : DistributionGroupGuid
Distinguished name	Map	DistributionGroupDistinguishedName
DistributionGroupType	Map	DistributionGroupType
DistributionGroupExternalDirectoryObjectId	Map	DistributionGroupExternalDirectoryObjectId
DistributionGroupIsDirSynced	Map	DistributionGroupIsDirSynced

(1) Omada uses DistributionGroupCustomAttribute1 to store the logic key when creating distribution groups through resource. This is used to prevent the duplication of resources during the import process. If you're already using this attribute for another purpose, you can choose any other available custom attribute. Exchange supports up to 15 (CustomAttribute1 to CustomAttribute15). Make sure to update the reference in your task mappings (DistributionGroup) configuration accordingly.

Distribution Groups – Resource Assignments

Parameters:

Parameter	Value
Source	Distribution groups
Filter	Type=="DistributionGroupMembers" && MemberRecipientTypeDetails == "UserMailbox" && DistributionGroupIsDirSynced == "False" && !(Convert.ToString(DistributionGroupType).Contains("SecurityEnabled"))
Description	Online distribution groups members

Mappings:

Destination	Operator	Source
Resource Business key	Map	DistributionGroupGuid
Account - CBK	Lookup	BusinessKey=MemberExternalDirectoryObjectId
Description	Map	MemberRecipientTypeDetails
MemberExternalDirectoryObjectId	Map	MemberExternalDirectoryObjectId

Administrative roles – Resource

Parameters:

Parameter	Value
Source	Administrative resources
Filter	Type=="RoleGroups"
Description	Role Groups

Mappings:

Destination	Operator	Source
Business key	Expression	string.Format("<system>{0}</system><resource>{1}</resource>",BuiltIn.SystemShortName, RoleGroupSamAccountName.ToLower() )
Security resource business key	Expression	string.Format("<system>{0}</system><resource>{1}</resource>",BuiltIn.SystemShortName, RoleGroupSamAccountName.ToLower() )
Name	Map	RoleGroupName
Category	Constant	Group
Type	Constant	Exchange Admin Role Group
Short Name	Expression	string.Format("{0}_{1}", BuiltIn.SystemShortName, RoleGroupName)
Logical key	Expression	string.Format("{0}_{1}", BuiltIn.SystemShortName, RoleGroupName)
Distinguished name	Map	RoleDistinguishedName
Description	Map	RoleGroupDescription
Scope	Map	Scope
RoleGroupType	Map	RoleGroupType

Administrative Roles – Resource Assignments

Parameters:

Parameter	Value
Source	Administrative resources
Filter	Type=="Members" && RecipientType?.ToString().IndexOf("Group") \< 0 && MemberRecipientTypeDetails =="UserMailbox"
Description	Online role assignments

Mappings:

Destination	Operator	Source
Resource Business key	Expression	string.Format("<system>{0}</system><resource>{1}</resource>",BuiltIn.SystemShortName, RoleGroupSamAccountName.ToLower() )
Account - CBK	Lookup	BusinessKey=MemberId
Business key	Expression	string.Format("<account>{0}</account><resource>{1}</resource><target>{2}</target>", MemberName, MemberRecipientTypeDetails, RoleGroupSamAccountName.ToLower())
Description	Map	MemberRecipientTypeDetails
MemberName	Map	MemberName

Administrative Role – Resource Parent Child

Parameters:

Parameter	Value
Source	Distribution groups
Filter	Type=="DistributionGroupMembers" && MemberRecipientTypeDetails != "UserMailbox"
Description	Online distribution groups members - groups, sharedmailbox, roommailbox, equipmentmailbox

Mappings:

Destination	Operator	Source
Indirect	Constant	0
Parent resource business key	Map	DistributionGroupGuid
Child resource - business key	Lookup	BusinessKey=MemberExternalDirectoryObjectId
