Omada Connectivity Framework for SAP Solutions - Release Notes

The release notes provide an overview of the changes made in the Omada Connectivity Framework for SAP Solutions.

note

To generate SAP Web services, the SAP NetWeaver application server must be running version 7.00 or higher. For the ABAP stack, SAP and ABA Support Package 14 or higher is required.

Identity Interfaces​

Patch release 126 – Identity Interfaces​

New Features​

The Identity Interfaces were extended with 30 additional custom attributes (CUST_EXT21 - CUST_EXT50). They are placed in the /OMADA/HRCACHE3 table. The new custom attributes can, just like the existing custom attributes, be populated using the dynamic extract program configuration.

note

To utilize the two new properties for an SAP system which is already onboarded in Omada Identity, update the XML in Queries and mappings by using CTRL + click on Queries and mappings. In the XML view that displays, insert the following line after xpaths= in the query for employees:

cust_ext21:./DEFAULT:CUST_EXT21
cust_ext22:./DEFAULT:CUST_EXT22


Add as many custom attributes as required/configured in SAP.

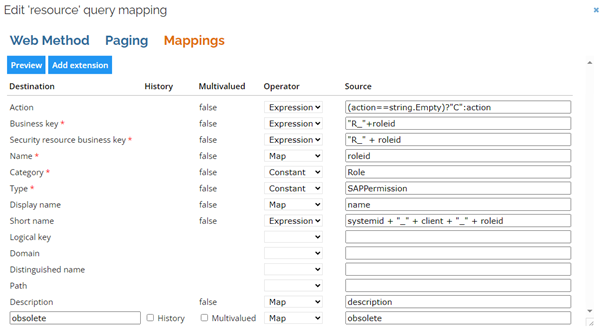

Afterwards, you can add them as extension attributes under Mappings for the Identity object.

SAP release notes

Changes​

We have added files for SAP S/4 HANA 2025.

Bug fixes​

N/A

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Community: Omada_Identity_Interfaces_126.zip. The .zip archive contains the files presented below.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR FilePAT File
SAP ERPSAP_BASIS 700 (M)SAP_HR 600 (M)Omada_Identity_Interfaces_126_NetWeaver.sarDE10021062679_0000265.PAT
SAP S/4 HANA 1909SAP_BASIS 754 (T)SAP_ABA 75E (T)Omada_Identity_Interfaces_126_S4HANA_1909.sarDE10021062679_0000266.PAT
SAP S/4 HANA 2020SAP_BASIS 755 (T)SAP_ABA 75F (T)Omada_Identity_Interfaces_126_S4HANA_2020.sarDE10021062679_0000267.PAT
SAP S/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)Omada_Identity_Interfaces_126_S4HANA_2021.sarDE10021062679_0000268.PAT
SAP S/4 HANA 2022SAP_BASIS 757 (T)SAP_ABA 75H (T)Omada_Identity_Interfaces_126_S4HANA_2022.sarDE10021062679_0000269.PAT
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_126_S4HANA_2023.sarDE10021062679_0000270.PAT
SAP S/4 HANA 2025SAP_BASIS 816 (T)SAP_ABA 816 (T)Omada_Identity_Interfaces_126_S4HANA_2025.sarDE10021062679_0000292.PAT

M - minimum version
T - required version

We now also provide an Attribute Change Package (ACP) which can be used when upgrading to a higher major version of SAP (you can avoid having to uninstall the previous version of the Omada SAP interfaces):

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR FilePAT File
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_126_ACP_S4HANA_2023.sarDE10021062679_0000271.PAT
SAP S/4 HANA 2025SAP_BASIS 816 (T)SAP_ABA 816 (T)Omada_Identity_Interfaces_126_ACP_S4HANA_2025.sarDE10021062679_0000293.PAT

Patch release 125 – Identity Interfaces​

New Features​

N/A

Changes​

N/A

Bug fixes​

We have provided a solution for the scrolling issue in the dynamic extract configuration using transaction /OMADA/CONFXHR, causing the test interface to be executed without reason (#INC-281490).

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub: Omada_Identity_Interfaces_125.zip. The .zip archive contains the files presented below.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR File
SAP ERPSAP_BASIS 700 (M)SAP_HR 600 (M)Omada_Identity_Interfaces_125_NetWeaver.sar
SAP S/4 HANA 1909SAP_BASIS 754 (T)SAP_ABA 75E (T)Omada_Identity_Interfaces_125_S4HANA_1909.sar
SAP S/4 HANA 2020SAP_BASIS 755 (T)SAP_ABA 75F (T)Omada_Identity_Interfaces_125_S4HANA_2020.sar
SAP S/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)Omada_Identity_Interfaces_125_S4HANA_2021.sar
SAP S/4 HANA 2022SAP_BASIS 757 (T)SAP_ABA 75H (T)Omada_Identity_Interfaces_125_S4HANA_2022.sar
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_125_S4HANA_2023.sar

M - minimum version
T - required version

We now also provide an Attribute Change Package (ACP) which can be used when upgrading to a higher major version of SAP (you can avoid having to uninstall the previous version of the Omada SAP interfaces):

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR File
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_125_ACP_S4HANA_2023.sar

Patch release 124 – Identity Interfaces​

New Features​

N/A

Changes​

N/A

Bug fixes​

We have provided a solution for the reported issue with the termination date of employees (#INC-275027). On the first day after the termination of an identity, the old TERMDATE was set to the old ValidFrom - 1 Day. One day later the TERMDATE was then set to the correct day (which would be yesterday).

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub: Omada_Identity_Interfaces_124.zip. The .zip archive contains the files presented below.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR File
SAP ERPSAP_BASIS 700 (M)SAP_HR 600 (M)Omada_Identity_Interfaces_124_NetWeaver.sar
SAP S/4 HANA 1909SAP_BASIS 754 (T)SAP_ABA 75E (T)Omada_Identity_Interfaces_124_S4HANA_1909.sar
SAP S/4 HANA 2020SAP_BASIS 755 (T)SAP_ABA 75F (T)Omada_Identity_Interfaces_124_S4HANA_2020.sar
SAP S/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)Omada_Identity_Interfaces_124_S4HANA_2021.sar
SAP S/4 HANA 2022SAP_BASIS 757 (T)SAP_ABA 75H (T)Omada_Identity_Interfaces_124_S4HANA_2022.sar
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_124_S4HANA_2023.sar
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_124_ACP_S4HANA_2023.sar

M - minimum version
T - required version

We now also provide an Attribute Change Package (ACP). Use it when upgrading to a higher major version of SAP to avoid having to uninstall the previous version of the Omada SAP interfaces.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR File
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_124_ACP_S4HANA_2023.sar

Patch release 123 – Identity Interfaces​

New features​

We have introduced two new properties for the Org. Unit object which holds the validity dates (called VALIDFROM and VALIDTO). This originates from the Ideas portal.

note

To utilize the two new properties for an SAP system which is already onboarded in Omada Identity, update the XML in Queries and mappings by using CTRL + click on Queries and mappings. In the XML view that displays, insert the following line after xpaths= in the query for orgunits:

validfrom:./DEFAULT:VALIDFROM
validto:./DEFAULT:VALIDTO

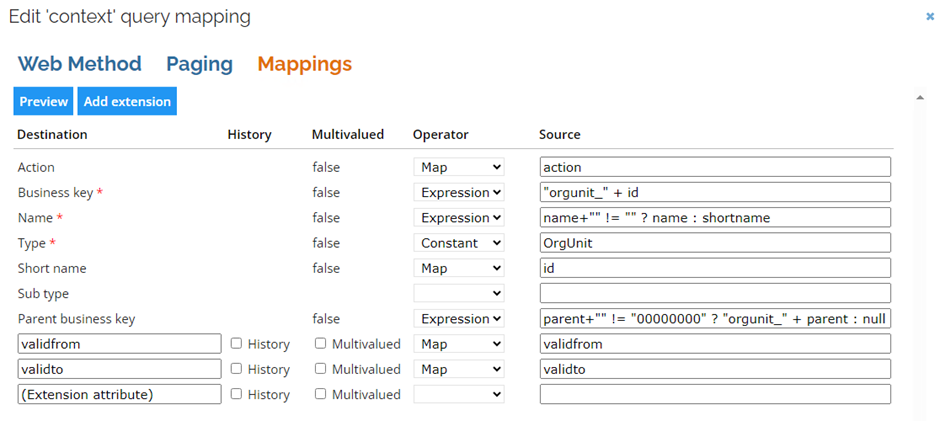

Afterwards you can add them as extension attributes under Mappings for the Org. Unit context.

Changes​

N/A

Bug fixes​

N/A

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub: Omada_Identity_Interfaces_123.zip. The .zip archive contains the files presented below.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR File
SAP ERPSAP_BASIS 700 (M)SAP_HR 600 (M)Omada_Identity_Interfaces_123_NetWeaver.sar
SAP S/4 HANA 1909SAP_BASIS 754 (T)SAP_ABA 75E (T)Omada_Identity_Interfaces_123_S4HANA_1909.sar
SAP S/4 HANA 2020SAP_BASIS 755 (T)SAP_ABA 75F (T)Omada_Identity_Interfaces_123_S4HANA_2020.sar
SAP S/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)Omada_Identity_Interfaces_123_S4HANA_2021.sar
SAP S/4 HANA 2022SAP_BASIS 757 (T)SAP_ABA 75H (T)Omada_Identity_Interfaces_123_S4HANA_2022.sar
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Identity_Interfaces_123_S4HANA_2023.sar

M - minimum version
T - required version

Patch release 122 – Identity Interfaces​

Not released.

Patch release 121 – Identity Interfaces​

Bug fixes​

Fixed an issue with the property TERMDATE on the Employee record, which was temporarily set incorrect on the first day of termination.

INC-274058 and INC-275027

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub: Omada_Identity_Interfaces_121.zip. The .zip archive contains the files below.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_121_NetWeaver.sar

  • SAP S/4 HANA 2019

    Omada_Identity_Interfaces_121_S4HANA_1909.sar

  • SAP S/4 HANA 2020

    Omada_Identity_Interfaces_121_S4HANA_2020.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_121_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_121_S4HANA_2022.sar

  • SAP S/4 HANA 2023

    Omada_Identity_Interfaces_121_S4HANA_2023.sar

Patch release 120 - Identity Interfaces​

Bug fixes​

In the Patch Release 118 we've introduced better support for the rehire scenario and to allow for having employees with re-hire actions being part of the extract x of days before the re-hire date. But unfortunately the change introduced an issue with new hires not being assigned correct status in the cache table, this issue is now fixed.

INC-271823

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download, as a Omada_Identity_Interfaces_120.zip file, from the Omada Hub at https://omada.fuseuniversal.com/topics/105046. The Zip file contains the files below.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_120_NetWeaver.sar

  • SAP S/4 HANA 2019

    Omada_Identity_Interfaces_120_S4HANA_2019.sar

  • SAP S/4 HANA 2020

    Omada_Identity_Interfaces_120_S4HANA_2020.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_120_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_120_S4HANA_2022.sar

Patch release 119 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 119.

Bug fixes​

The issue with configuring the i_headoforg_unit setting inside the BaDI, an enhancement point in the getmanager form introduced in the 115/116 patch release, has been resolved. It is no longer only an exporting variable, it is possible to configure it.

INC-269657

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download, as a Omada_Identity_Interfaces_119.zip file, from the Omada Hub at https://omada.fuseuniversal.com/topics/105046. The Zip file contains the files below.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_119_NetWeaver.sar

  • SAP S/4 HANA 2019

    Omada_Identity_Interfaces_119_S4HANA_2019.sar

  • SAP S/4 HANA 2020

    Omada_Identity_Interfaces_119_S4HANA_2020.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_119_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_119_S4HANA_2022.sar

Patch release 118 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 118.

Changes​

Rehire scenario improvements

The support for the rehire scenario has been improved, allowing the employees with the rehire actions, with configurable number of days before the rehire date, to be included in the extract.

The dynamic extract configuration has been changed. Omada recommends comparing and verifying the content of the BC Set /OMADA/TABLE_CONTENTS before deploying it to your SAP environment.

Following elements have been updated:

  • /OMADA/BASICCSEL - basic selection

  • /OMADA/MPPARAM - fields to extract

  • /OMADA/DYN_DATE - rules for dates used for conditions or exceptions

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download, as a Omada_Identity_Interfaces_118.zip file, from the Omada Hub at https://omada.fuseuniversal.com/topics/105046. The Zip file contains the files below.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_118_NetWeaver.sar

  • SAP S/4 HANA 2019

    Omada_Identity_Interfaces_118_S4HANA_2019.sar

  • SAP S/4 HANA 2020

    Omada_Identity_Interfaces_118_S4HANA_2020.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_118_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_118_S4HANA_2022.sar

Patch release 117 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 117.

Changes​

Extracting organizational units

Extracting organizational units that are going to be active in the future is now supported. A new field ISFUTURE has been added to the organizational unit structure to identify those records.

MGR_PERID_EXT field added

We've extended the organizational unit structure with the MGR_PERID_EXT field, containing information about the manager assigned as a head of the organizational unit.

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download, as a Omada_Identity_Interfaces_117.zip file, from the Omada Hub at https://omada.fuseuniversal.com/topics/105046. The Zip file contains the files below.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_117_NetWeaver.sar

  • SAP S/4 HANA 2020

    Omada_Identity_Interfaces_117_S4HANA_2020.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_117_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_117_S4HANA_2022.sar

Patch release 116 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 116.

Bug fixes​

This version replaces Patch Release 115 which had references to the /OMADANET/ package, resulting in issues during installation attempts.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download, as a Omada_Identity_Interfaces_116.zip file, from the Omada Hub at https://omada.fuseuniversal.com/topics/105046. The Zip file contains the files below.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_116_NetWeaver.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_116_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_116_S4HANA_2022.sar

Patch release 115 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 115.

New features​

New extension point

We have introduced a new extension point allowing to utilize a BADI for retrieving manager information.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_115_NetWeaver.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_115_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_115_S4HANA_2022.sar

Patch release 114 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 114.

New features​

SAP certification

The Identity Interfaces are now also SAP certified for use on SAP S/4 HANA Cloud, private edition.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

  • SAP NetWeaver, all versions

    Omada_Identity_Interfaces_114_NetWeaver.sar

  • SAP S/4 HANA 2021

    Omada_Identity_Interfaces_114_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Identity_Interfaces_114_S4HANA_2022.sar

Patch release 113 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 113.

Bug fixes​

SAP HCM organizational unit collector bug

The issue with the address extraction, reported after the patch release 110, has now been resolved.

INC-258185

SAP HCM ORG UNIT SEND Function Module retrieves wrong manager

The issue with retrieving the appropriate, current manager for the organizational unit has now been resolved.

INC-257920

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Identity_Interfaces_113.sar

Patch release 112 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 112.

Changes​

Improvements for processing of future records

Improvements have been introduced to the processing of future Position, Job, and Org Unit information and the way they are returned for the Employee object.

Changes were introduced to the dynamic extract configuration, hence recommends comparing the delivered BC Set with the actual customization table in your SAP environment.

Improvements to delta mode

When using delta mode for reading employees from SAP HCM, the web service has been changed to return terminated employees as changed instead of deleted. This prevents the identities with a future termination date in SAP to be terminated in Enterprise Server before the ValidTo date occurs.

INC-259929

Bug fixes​

SAP Function Module /OMADA/HR_ORG_UNITS returning future values

Issue with SAP standard Function Module RH_SETUP_TREE_TABLE not returning updated values in TEXT5 and TEXT6 due to buffering is now resolved by reading current values directly from the table.

INC-259662

SAP HCM Connectivity - Rehiring actions are not resolved

When multiple rehire actions existed for an employee, only one of them was taken.

This issue has been resolved so that the extract program now returns the ValidFrom date of the next or closest rehire action in the future.

INC-260093

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Identity_Interfaces_112.sar

Patch release 111 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 111.

Bug fixes​

SAP Connectivity - HCM ORG UNIT SEND Function Module retrieves wrong manager

The Omada SAP Function Module ABAP_HR_ORGUNIT_SEND now correctly retrieves currently assigned department manager.

SAP HCM - organizational unit collector bug

An issue with address extraction FM/OMADA/HR_ORG_UNITS is now fixed with the temp_org_unit variable established properly.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

• Omada_Identity_Interfaces_111.sar

Patch release 110 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 110.

New features​

Delta Config tab added to dynamic extract configuration

A new tab, named Delta Config is added allowing to specify which infotypes are included for delta detection in employee changes.

Changes​

Obsolete class references removed

To ensure successful installation via SAINT, when the ABAP/Dynpro Generation setting is configured to Always, obsolete class references are removed.

ABAP/Dynpro Generation setting

Delta functionality extension

The Delta functionality is extended to detect changes to manager assignments on the organizational units. When a new manager is assigned to an organizational unit, all employees directly referenced in the organizational unit are included in the delta calculation.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

• Omada_Identity_Interfaces_110.sar

Patch release 109 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 109.

New features​

Improvements in assigning access approvals

To improve the assignment of the access approval process for new manager, we have added a logic for calculating the future manager role. In a situation of a rehiring it is crucial for an employee to have all necessary access rights right away to be able to perform their daily tasks.

We have added two new fields in the /OMADA/HRCACHE table:

  • MGR_PERNO_NEXT

  • MGR_INITS_NEXT

For more information, see the SAP HCM Connectivity.

Changes​

Additional fields in HRCACHE2 table

We have added ten additional custom extension fields to /OMADA/HRCACHE2 table. Each of the fields is 50 characters long and is named from CUST_EXT11 to CUST_EXT20.

For more information, see the SAP HCM Connectivity.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

• Omada_Identity_Interfaces_109.sar

Patch release 108 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 108.

New features​

Prerequisite check

For the installation of the Identity Interfaces of the Omada Connectivity Framework for SAP Solutions v6, we have introduced a prerequisite check to verify if the HR module is available in the SAP system, for which you are trying to import the package.

Changes​

Additional cache table

We have introduced an additional cache table named /OMADA/HRCACHE2 as the existing cache table had reached its maximum number of supported characters. The length of the custom extension field 1-10 have been extended to 200 characters and are now placed in the new table. For more information about which fields are now placed in the new table see the SAP HCM Connectivity.

The batch job for populating the cache tables will now populate both tables at the same time, and from a web services point of view there are no changes.

Additional properties available on context objects

For the Company Code objects we are now extracting the NAME1 and NAME2 properties from the ADDR1_DATA table.

For the Org. Unit objects we are now also extracting properties from tables:

  • HRP1008: BUKRS, GSBER, WERKS, PERSA, BTRTL, KOKRS

  • HRP1028: Included all properties

In order to make use of the new available properties, you must manually update the Queries and Mappings in the SAP HCM Collector in Omada Identity.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Identity_Interfaces_108.sar

Patch release 107 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 107.

Bug fixes​

An issue with using both Paging and Delta for the Employee web service not returning correct total number of pages has been fixed.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Identity_Interfaces_107.sar

Patch release 106 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 106.

New features​

Paging and Delta support

We have introduced support of paging and delta in the SAP Identity Data web services.

ObjectOmada interface in SAPPaging supportDelta support
Employees/OMADA/EMPL_GET_RESPYesYes
Company Codes/OMADA/FICO_COMP_CODE_RESPYesNo
Cost Centers/OMADA/FICO_COST_CENTER_RESPNoNo
Buildings/OMADA/HR_BUILD_RESPYesNo
Jobs/OMADA/HR_JOBS_RESPYesNo
Positions/OMADA/HR_ORGPOS_RESPYesNo
Org. Units/OMADA/HR_ORGUNIT_RESPYesNo
Personnel Area/OMADA/HR_PERSAREA_RESPYesNo
Personnel Subarea/OMADA/HR_PERSSUBAREA_RESPYesNo

To take advantage of the paging and delta support in the SAP interfaces we provide, customers must upgrade to the below versions of Omada Identity/Omada Identity Cloud:

ProductPagingDelta
Omada IdentityV14 Update 9V14 Update 10Expected to be released in December 2021
Omada Identity CloudV14 Update 8, CU4V14 Update 9, CU8

Changes​

**#### SAP HCM Dynamic Extract Program

The extract of Positions from SAP now supports filtering on the property Planning Status (ISTAT), the filter is default set to 1 and filtering must be used for Delta functionality to work.

Previously we only looked up the assigned Head of Org. Unit in SAP HCM, but with this release we have introduced an additional method for looking up the manager of an employee. The extract program is using the standard SAP function module HR_ASR_GET_LEADER to find the manager, see below for how the relation is defined in SAP HCM.

Example

Starts with employee PERNO » employee Position (PA0001) » get supervisor Position (HRP1001 A 002) » supervisor position PERNO holder (HRP1001 A 008).

The Manager’s PERNO is written to table /OMADA/HRCACHE to the existing field MGR_INITS.

Bug fixes​

An issue with the Personnel Sub Area data not being populated in the HRCACHE table and thereby not being returned by our web services when the Identity’s validity is in the future is now resolved.

Creation of new entries for Termination Types in transaction /OMADA/CONFXHR sometimes resulted in empty records in table /OMADA/TERM_TYPE, this issue is now resolved.

Creation of new entries for Start Dates in transaction /OMADA/CONFXHR sometimes resulted in empty records in table /OMADA/ID_STRTDT, this issue is now resolved.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Identity_Interfaces_106.sar

Patch release 105 - Identity Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 105.

New features​

SAP HCM Dynamic Extract Program

performance improvements

The logic in the extract program has been optimized to increase the performance – dependent on the employee population we have seen improvements of up to 80% in the runtime of the cache table population in SAP HCM.

  • Test Function

    Test functionality of the dynamic extract configuration is now included.

  • Logging

    Logging functionality is implemented and easily accessible from within the configuration transaction.

Changes​

Consolidated transaction code for configuration

The configuration of the dynamic extract is now consolidated in one transaction code: /OMADA/CONFXHR.

SAP HCM Dynamic Extract Program enhancements

  • Re-Hires

    We have changed the logic and improved the support for the re-hire scenario.

  • Termination Date

    The calculation of termination date is improved, and the task mapping for ValidTo on Identities is updated to consider if a termination date exists – then this date is used for _ValidTo_.

  • Documentation

    Documentation of the dynamic extract program is updated and improved.

Bug fixes​

An issue in the CALC_DT1 configuration has been fixed. The missing line in the Rules for dates used for conditions or exceptions has been added.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Identity_Interfaces_105.sar

Access Interfaces​

Patch release 113 - Access Interfaces​

New features​

We have introduced new functionality to improve how user parameters are managed. Previously all existing parameters were overwritten when new parameters were added. A new section Parameter2 has been added to the User Modify web service, which supports specifying an Action (ADD, REMOVE, MODIFY) to determine how the parameters should be managed. New logic in the code is comparing with existing parameters and executes only the required Add, Modify, Remove actions instead of replacing all existing parameters. This originates from the AHA Idea OI-I-1336.

note

To utilize the new functionality a new version of the SAP Connector is required, which is included in the November 2025 Cloud Update / On-prem. V15 Update 5.

Changes​

We have added files for SAP S/4 HANA 2025.

Bug fixes​

N/A

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Community: Connectivity Packages Folder - with binaries (once you click the folder name, you will be redirected to a new location - go to Omada Connectivity Framework for SAP Solutions v6.0, and then click Omada_Access_Interfaces_113.zip). The .zip archive contains the files presented below.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR FilePAT File
SAP ERPSAP_BASIS 700 (M)Omada_Access_Interfaces_113_NetWeaver.sarDE10021062679_0000273.PAT
SAP S/4 HANA 1909SAP_BASIS 754 (T)SAP_ABA 75E (T)Omada_Access_Interfaces_113_S4HANA_1909.sarDE10021062679_0000274.PAT
SAP S/4 HANA 2020SAP_BASIS 755 (T)SAP_ABA 75F (T)Omada_Access_Interfaces_113_S4HANA_2020.sarDE10021062679_0000275.PAT
SAP S/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)Omada_Access_Interfaces_113_S4HANA_2021.sarDE10021062679_0000276.PAT
SAP S/4 HANA 2022SAP_BASIS 757 (T)SAP_ABA 75H (T)Omada_Access_Interfaces_113_S4HANA_2022.sarDE10021062679_0000277.PAT
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Access_Interfaces_113_S4HANA_2023.sarDE10021062679_0000278.PAT
SAP S/4 HANA 2025SAP_BASIS 816 (T)SAP_ABA 816 (T)Omada_Access_Interfaces_113_S4HANA_2025.sarDE10021062679_0000290.PAT
SAP S/4 HANA 1909 S4FNDSAP_BASIS 754 (T)SAP_ABA (M)
S4FND 120 (M)		Omada_Access_Interfaces_113_S4HANA_1909_S4FND_120.sarDE10021062679_0000284.PAT
SAP S/4 HANA 2022 S4FNDSAP_BASIS 757 (T)SAP_ABA 75H (T)
S4FND 107 (T)		Omada_Access_Interfaces_113_S4HANA_2022_S4FND_107.sarDE10021062679_0000285.PAT
SAP BW/4 HANA 1.0SAP_BASIS 752 (T)SAP_ABA 75C (T)
SAP_BW 752 (T)		Omada_Access_Interfaces_113_BW4HANA_10.sarDE10021062679_0000279.PAT
SAP BW/4 HANA 2.0SAP_BASIS 753 (T)SAP_ABA 75D (T)
DW4CORE 200 (T)		Omada_Access_Interfaces_113_BW4HANA_20.sarDE10021062679_0000280.PAT
SAP BW/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)
DW4CORE 300 (T)		Omada_Access_Interfaces_113_BW4HANA_2021.sarDE10021062679_0000281.PAT
SAP BW/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)
DW4CORE 400 (T)		Omada_Access_Interfaces_113_BW4HANA_2023.sarDE10021062679_0000282.PAT
SAP CARAB 4.0SAP_BASIS 752 (T)SAP_ABA 75C (T)
SAP_BW 752 (T)
S4FND 102 (T)		Omada_Access_Interfaces_113_CARAB_40.sarDE10021062679_0000283.PAT
SAP CARAB 5.0SAP_BASIS 758 (T)SAP_ABA 75I (T)
SAP_BW 758 (T)
S4FND 108 (T)		Omada_Access_Interfaces_113_CARAB_50.sarDE10021062679_0000286.PAT

M - minimum version
T - required version

We now also provide an Attribute Change Package (ACP). Use it when upgrading to a higher major version of SAP to avoid having to uninstall the previous version of the Omada SAP interfaces.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR FilePAT File
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Access_Interfaces_113_ACP_S4HANA_2023.sarDE10021062679_0000288.PAT
SAP S/4 HANA 2025SAP_BASIS 816 (T)SAP_ABA 816 (T)Omada_Access_Interfaces_113_ACP_S4HANA_2025.sarDE10021062679_0000291.PAT
SAP BW/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)
DW4CORE 400 (T)		Omada_Access_Interfaces_113_ACP_BW4HANA_2023.sarDE10021062679_0000289.PAT
SAP CARAB 5.0SAP_BASIS 758 (T)SAP_ABA 75I (T)
SAP_BW 758 (T)
S4FND 108 (T)		Omada_Access_Interfaces_113_ACP_CARAB_50.sarDE10021062679_0000287.PAT

Patch release 112 - Access Interfaces​

New features​

We have introduced one new property on the Role object which holds information whether the role is set to obsolete in SAP (IS_OBSOLETE). This originates from the AHA Idea OI-I-1521.

note

To utilize the new property for an SAP system which is already onboarded in Omada Identity, update the XML behind the Queries and mappings (use CTRL + click on Queries and mappings). In the displayed XML, insert the following line after xpaths= in the query for Roles:

obsolete:./DEFAULT:IS_OBSOLETE


You can now add them as extension attributes under Mappings for the Resource > Roles query.

Changes​

N/A

Bug fixes​

N/A

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub. The .zip archive contains the files presented below.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR File
SAP ERPSAP_BASIS 700 (M)Omada_Access_Interfaces_112_NetWeaver.sar
SAP Solution Manager 740SAP_BASIS 754 (T)SAP_ABA (M)
S4FND 120 (M)		Omada_Access_Interfaces_112_SOLMAN.sar
SAP S/4 HANA 1909SAP_BASIS 754 (T)SAP_ABA 75E (T)Omada_Access_Interfaces_112_S4HANA_1909.sar
SAP S/4 HANA 2020SAP_BASIS 755 (T)SAP_ABA 75F (T)Omada_Access_Interfaces_112_S4HANA_2020.sar
SAP S/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)Omada_Access_Interfaces_112_S4HANA_2021.sar
SAP S/4 HANA 2022SAP_BASIS 757 (T)SAP_ABA 75H (T)Omada_Access_Interfaces_112_S4HANA_2022.sar
SAP S/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)Omada_Access_Interfaces_112_S4HANA_2023.sar
SAP BW/4 HANA 1.0SAP_BASIS 752 (T)SAP_ABA 75C (T)
SAP_BW 752 (T)		Omada_Access_Interfaces_112_BW4HANA_10.sar
SAP BW/4 HANA 2.0SAP_BASIS 753 (T)SAP_ABA 75D (T)
DW4CORE 200 (T)		Omada_Access_Interfaces_112_BW4HANA_20.sar
SAP BW/4 HANA 2021SAP_BASIS 756 (T)SAP_ABA 75G (T)
DW4CORE 300 (T)		Omada_Access_Interfaces_112_BW4HANA_2021.sar
SAP BW/4 HANA 2023SAP_BASIS 758 (T)SAP_ABA 75I (T)
DW4CORE 400 (T)		Omada_Access_Interfaces_112_BW4HANA_2023.sar
SAP CARAB 4.0SAP_BASIS 752 (T)SAP_ABA 75C (T)
SAP_BW 752 (T)
S4FND 102 (T)		Omada_Access_Interfaces_112_CARAB_40.sar
SAP CARAB 5.0SAP_BASIS 758 (T)SAP_ABA 75I (T)
SAP_BW 758 (T)
S4FND 108 (T)		Omada_Access_Interfaces_112_CARAB_50.sar

M - minimum version
T - required version

We now also provide an Attribute Change Package (ACP). Use it when upgrading to a higher major version of SAP to avoid having to uninstall the previous version of the Omada SAP interfaces.

SAP VersionSAP Basis levelSAP HR/ABA LevelSAR File
SAP S/4 HANA 2023SAP_BASIS 758 (T)
SAP_ABA 75I (T)		Omada_Access_Interfaces_112_ACP_S4HANA_2023.sar
SAP CARAB 5.0SAP_BASIS 758 (T)
SAP_ABA 75I (T)
SAP_BW 758 (T)
S4FND 108 (T)		Omada_Access_Interfaces_112_ACP_CARAB_50.sar

Patch release 111 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 111.

Bug fixes​

An issue with using the delta import for SAP Roles, after performing customization in transaction /OMADANET/AUTHCONF has been resolved.

INC-267711

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

  • SAP NetWeaver, all versions

    Omada_Access_Interfaces_111.sar

  • SAP S/4 HANA 2020

    Omada_Access_Interfaces_111_S4HANA_2020.sar

  • SAP S/4 HANA 2021

    Omada_Access_Interfaces_111_S4HANA_2022.sar

  • SAP S/4 HANA 2022

  • Omada_Access_Interfaces_111_S4HANA_2022.sar

Patch release 110 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 110.

Bug fixes​

When using the Delta import, there was a risk that random users would have a role assignment marked as Deleted, despite the role assignment being still active in the SAP. An issue in the function module /OMADANET/GET_USER_DETAILS has been fixed and the problem no longer occurs.

INC-266101

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

  • SAP NetWeaver, all versions

    Omada_Access_Interfaces_110_NetWeaver.sar

  • SAP S/4 HANA 2020

    Omada_Access_Interfaces_110_S4HANA_2020.sar

  • SAP S/4 HANA 2021

    Omada_Access_Interfaces_110_S4HANA_2022.sar

  • SAP S/4 HANA 2022

  • Omada_Access_Interfaces_110_S4HANA_2022.sar

Patch release 109 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 109.

Changes​

The template role Y_OMADA_SAPMA_CONSUMER_ECC has been extended to include the t-codes SM04, SM50 and SM51. This has been done to mitigate potential authorizations issues with customers having SAP systems with the Support Package level mentioned in SAP Note 2049119.

In addition to the above change to our SAP template role, the endpoint for User Modify has also been enhanced to include better exception handling in case of missing authorizations.

INC-263983 INC-262110 INC-262690

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

  • SAP NetWeaver, all versions

    Omada_Access_Interfaces_109_NetWeaver.sar

  • SAP S/4 HANA 2021

    Omada_Access_Interfaces_109_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Access_Interfaces_109_S4HANA_2022.sar

Patch release 108 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 108.

New features​

SAP certification

The Identity Interfaces are now also SAP certified for use on SAP S/4 HANA Cloud, private edition.

Bug fixes​

Handling the delta imports of roles, in case multiple SAP clients are used in same SAP system, is improved.

INC-263251

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

  • SAP NetWeaver, all versions

    Omada_Access_Interfaces_108_NetWeaver.sar

  • SAP S/4 HANA 2021

    Omada_Access_Interfaces_108_S4HANA_2021.sar

  • SAP S/4 HANA 2022

    Omada_Access_Interfaces_108_S4HANA_2022.sar

Patch release 107 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 107.

Bug fixes​

An issue with calculating number records when using paging is resolved.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Access_Interfaces_107.sar

Patch release 106 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 106.

New features​

Paging and Delta support

We have introduced support of paging and delta in the SAP Access Data web services.

ObjectOmada interface in SAPPaging supportDelta support
Users/OMADANET/USER_GET_ALL_RESPYesYes
Roles/OMADANET/AUTH_ROLES_RESPYesYes
Profiles/OMADANET/AUTH_PROF_RESPYesYes
T-codes/OMADANET/AUTH_ROLES_RESPNoNo

To take advantage of the paging and delta support in the SAP interfaces we provide, customers must upgrade to the below versions of Omada Identity/Omada Identity Cloud:

ProductPagingDelta
Omada IdentityV14 Update 9V14 Update 10Expected to be released in December 2021
Omada Identity CloudV14 Update 8, CU4V14 Update 9, CU7

Changes​

The attribute SECURITY_POLICY is added to the list of available attributes to extract from SAP, the attribute is placed in the tab Logon Data in transaction SU01 – User Management in SAP.

The attribute is currently not available for provisioning to via OPS.

The interface for retrieving Profiles from SAP is changed, so now only Profiles with an active status are part of the extract.

The interface for retrieving users from SAP is changed, so that we no longer expose the hashed passwords for users.

Bug fixes​

Basic Selection behavior corrected

The new "Basic Selection" functionality introduced in the 103 release was returning all records instead of the selected ones. This release corrects this behavior.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Access_Interfaces_106.sar

Patch release 105 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 105.

Due to an installation issue it is necessary to upgrade directly to Patch Release 106 for Access Interfaces which contains all changes for Patch Release 105.

Patch release 104 - Access Interfaces​

Information on what has changed and what features have been added in the Omada Connectivity Framework for SAP Solutions v6 – Release 104.

New features​

SAP User extract

Default behavior of the Omada Connectivity Framework for SAP Solutions is to extract all user records from SAP, but now we provide support for excluding SAP user records from the import to Omada Identity, and thereby reducing the number of user records being read from SAP to Omada Identity.

Use Transaction code /OMADANET/USERCONF to insert dynamic where clauses to exclude users.

Roles and Profiles extract

Default behavior of the Omada Connectivity Framework for SAP Solutions is to extract all roles and profiles from SAP, but now we provide support for excluding SAP roles and profiles from the import to Omada Identity, and thereby reducing the number of records being read from SAP to Omada.

Use Transaction code /OMADANET/AUTHCONF to insert dynamic where clauses to exclude roles and profiles.

important

Use this option with caution, if you exclude roles and/or profiles which are assigned to users, you will experience issues when importing resource assignments for users as they will refer to non-existing resources.

Bug fixes​

Incompatibility with SAP not running ECC

With this release we have fixed an issue with incompatibility on SAP systems not running ECC.

SAR files​

The files required for updating the Omada Connectivity Framework for SAP Solutions are available for download from the Omada Hub at https://omada.fuseuniversal.com/topics/105046.

The required files are:

  • Omada_Access_Interfaces_104.sar
